ATF Cooler, Components

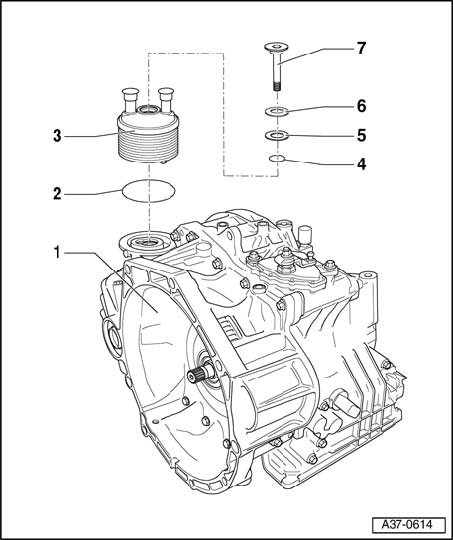

ATF cooler, components, 09G, 6 Speed A/T





1 - Transmission housing

2 - O-ring
^ Always replace

3 - ATF cooler

4 - O-ring
^ Always replace

5 - Washer

6 - Dished washer
^ Installation position: Must lie on washer Item - 5 -. Convex side of dished washer must face up.

7 - Bolt, 36 Nm
