Component Assembly Overview

Component assembly overview

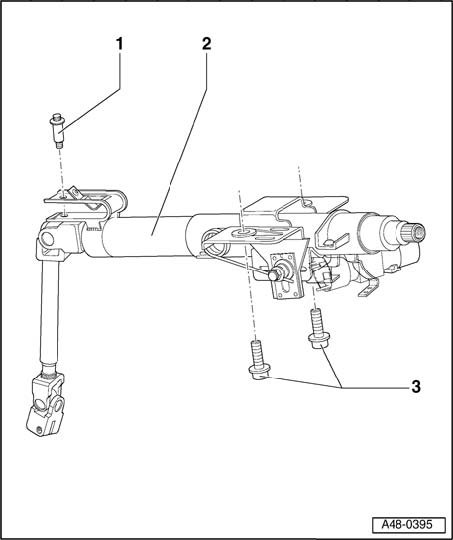

Steering column type: 1





1 - Shear bolt
^ Tighten until head shears off (7 to 12 Nm).

2 - Steering column

3 - Bolt with washer
^ Tightening torque 20 + 5 Nm

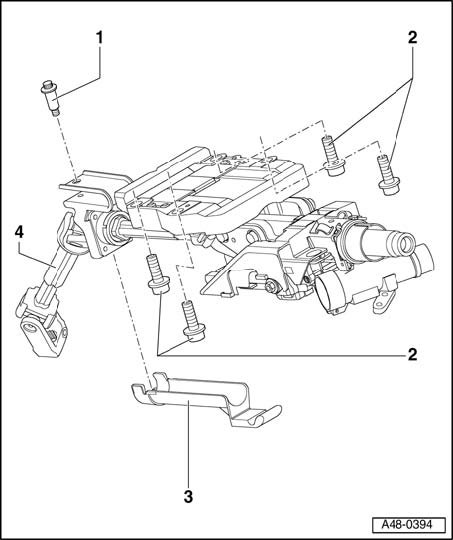

Steering column type: 2





1 - Shear bolt
^ Tighten until head shears off (7 to 12 Nm).

2 - Bolt with washer
^ Tightening torque: 22 Nm

3 - Transport lock
^ Remove before connecting to central tube.

4 - Steering column
