Connector Station

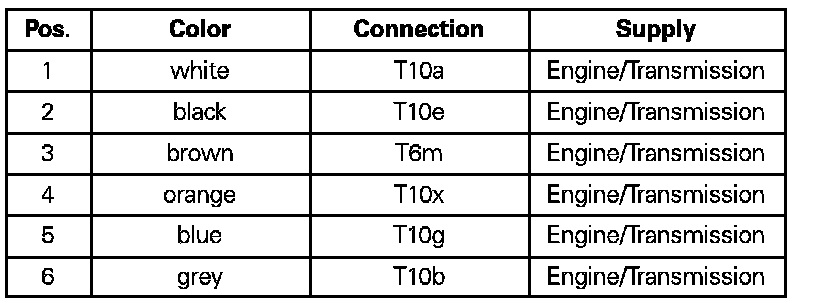

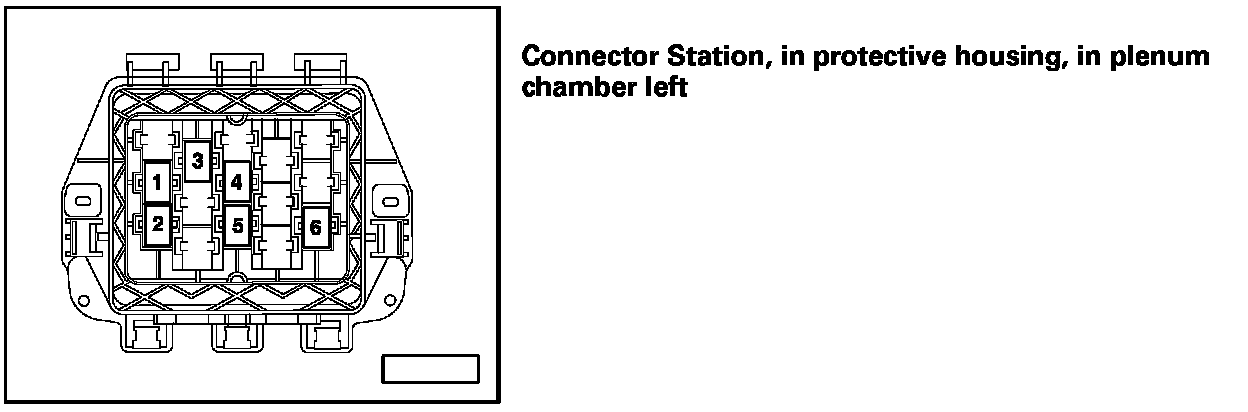

Connector Station, In Protective Housing, In Plenum Chamber Left

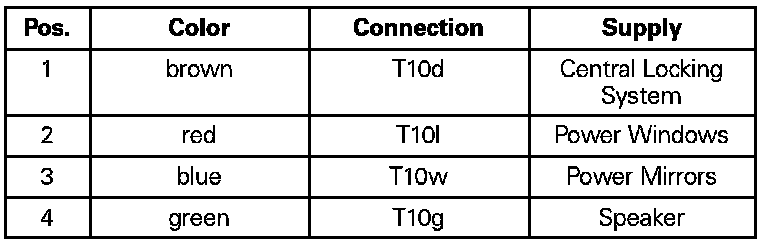

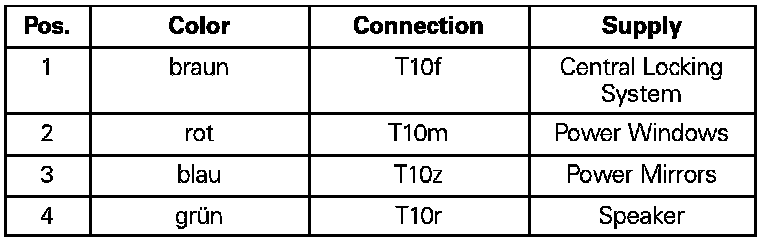

Connector Station A-pillar

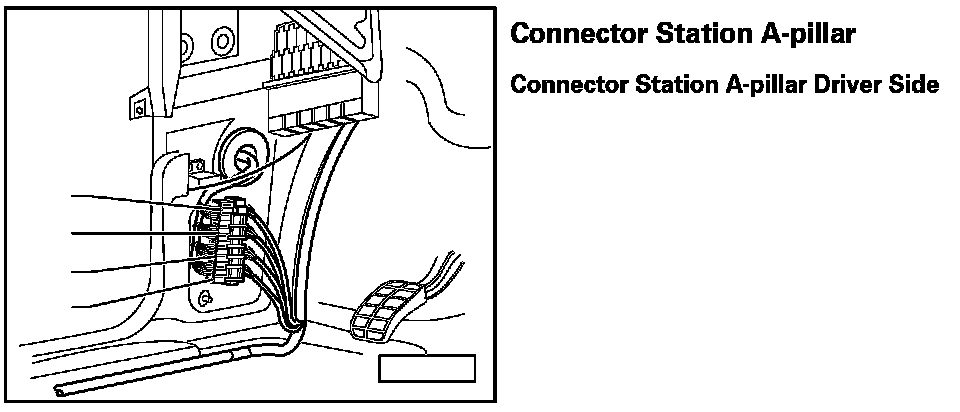

Connector Station A-pillar Driver Side

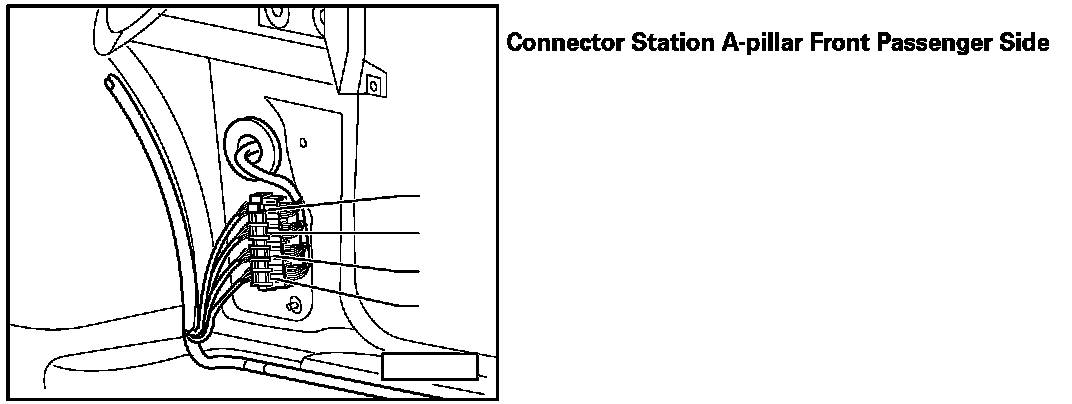

Connector Station A-pillar Front Passenger Side
