Fuse Panel, Removing and Installing

Fuse Panel, Removing And Installing

CAUTION:
Before beginning repairs on the electrical system:
- Obtain the anti-theft radio security code.
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.
- Disconnect negative ( - ) battery terminal.
- When reconnecting battery terminals, observe all applicable Notes and torque specifications, as well as instructions on performing OBD program and electrical system function checks as specified.

Removing

NOTE: All removed cable ties are to be replaced and attached in original location.

- Disconnect battery.
- Remove driver's lower instrument panel trim

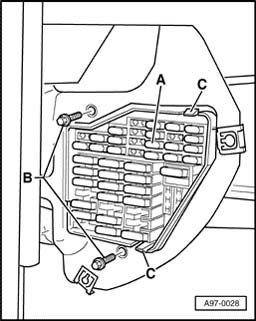

- Remove screws -B-.
- Release clips -C- and push fuse panel behind and below instrument panel.







- Cut cable tie -1-.
- Release cover -arrows-.
- Remove fuses.







- Remove retaining strip for connectors -arrows-.
- Remove connectors.
- Unclip socket -1-.

NOTE: Individual fuse assignments







Installing
Install in reverse order of removal of removal, noting the following:

NOTE: All removed cable ties are to be replaced and attached in original location.

- Reconnect battery.

Tightening torque

Fuse box to instrument panel central tube 3 Nm
