Ribbed Belt Pulley, Removing and Installing

Ribbed Belt Pulley, Removing And Installing

Special tools, testers and auxiliary items needed

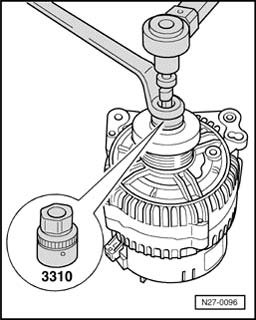

- Socket 3310







- VAG 1332 Torque wrench (or equivalent 40 - 200 Nm )







- Counter-hold securing nut using 3310.
- To remove, turn generator shaft clockwise.
- To install, turn generator shaft counter-clockwise

Tightening torques

Generator pulley to generator - nut 65 Nm
