Ribbed Belt Pulley Without Freewheel, Removing And Installing

Ribbed Belt Pulley Without Freewheel, Removing And Installing

Special tools, testers and auxiliary items required
- Socket 3310
- 8 mm hex socket or TORX T50







Removing
- Remove generator Electrical Equipment.
- If present, press the protective cap off the generator pulley.

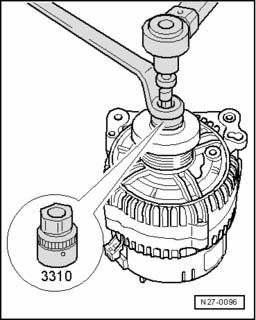

- Counterhold mounting nut using socket 3310 and rotate generator shaft clockwise to loosen it.
- Remove ribbed belt pulley.

Installing
Install in reverse order of removal, observing the following:
- Turn the generator shaft counterclockwise to tighten.
- Clip protective cap onto generator pulley.

Tightening torque

Ribbed belt pulley to generator 65 Nm
