Rear Three-Point Seat Belt, Removing and Installing

Rear Three-point Seat Belt, Removing And Installing

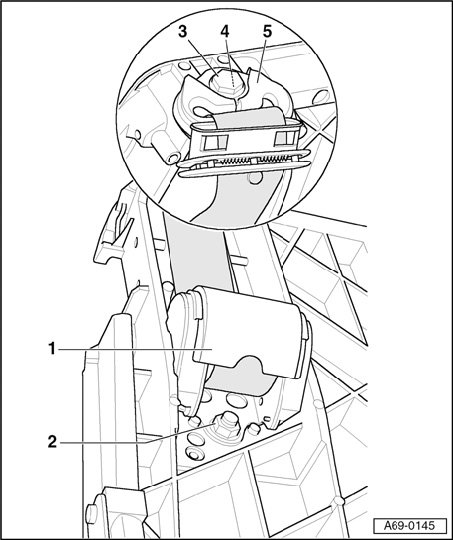

1 - Belt reel

- Removing
- Remove rear seat bench and backrest
- Remove buckle trim
- Remove upholstery (cover and padding) from rear backrest
- Remove belt trim and belt casing
- Remove bolt - 3 - (1x).
- Remove nut - 2 -.

- Installing
- Place spacer ring - 4 - underneath guide fitting - 5 -.
- Remainder of installation is carried out in reverse order of removal.

2 - Nut
- Tightening torque 55 Nm
3 - Bolt
- Tightening torque 55 Nm
4 - Spacer ring
5 - Guide fitting
