Center Anchorage Points on Floor Panel

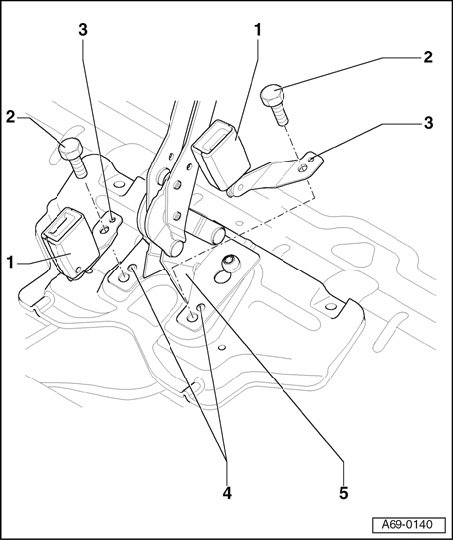

Center Anchorage Points On Floor Panel







1 - Seat belt buckle

NOTE: Rear backrest not pictured in order to simplify illustration.

- Removing
- Remove rear seat bench
- Remove screw - 2 -.

- Installing
- When installing, make sure mounting - 3 - is positioned on retainer tab - 4 -.

2 - Screws (2x)
- Tightening torque 55 Nm
3 - Mounting
4 - Retainer tab
5 - Center support bracket
