Belt Trim and Belt Casing, Removing

Belt Trim And Belt Casing, Removing

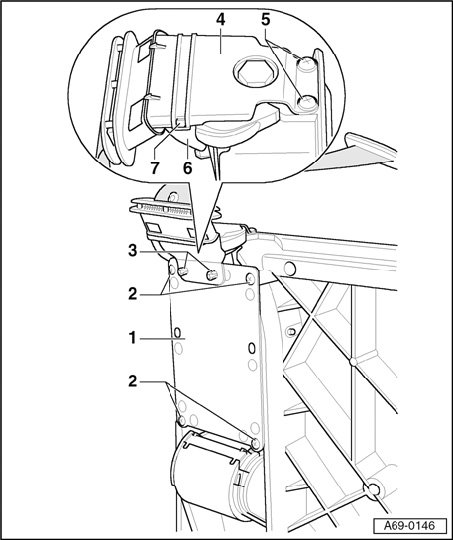

1 - Belt trim
- Belt trim and belt casing can only be removed together
- Remove screws - 2 - (4x).
- Release retainer tab - 7 - and fold down bottom part of belt casing - 6 -.
- Remove screws - 5 - (2x).
- Detach belt trim - 1 - from casing - 3 - by pressing out clips - 4 -.

2 - Screws (4x)
3 - Clips
4 - Belt casing
- Belt trim and belt casing can only be removed together
- Remove screws - 2 - (4x).
- Release retainer tab - 7 - and fold down bottom part of belt casing - 6 -
- Remove screws - 5 - (2x).
- Detach belt trim - 1 - from casing - 4 - by pressing out clips - 3 -.
5 - Screws (2x)
6 - Bottom part of belt casing
7 - Retainer tab
