B-Pillar Brace, Removing
B-pillar Brace, Removing

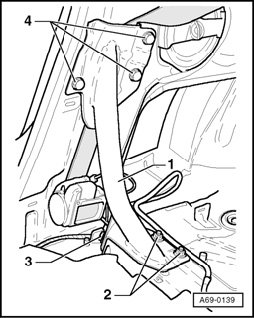

- Remove side trim
- Remove nuts - 2 - (2x).
- Tightening torque 40 Nm
- Remove screw - 3 -.
- Tightening torque 40 Nm
- Remove screws - 4 - (3x).
- Tightening torque 40 Nm
B-pillar Brace, Removing
- Remove side trim
- Remove nuts - 2 - (2x).
- Tightening torque 40 Nm
- Remove screw - 3 -.
- Tightening torque 40 Nm
- Remove screws - 4 - (3x).
- Tightening torque 40 Nm
