Seat Belt Latch: Service and Repair

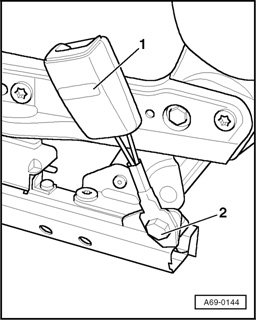

Belt Buckle Anchorage Point







- Remove seat
- Belt buckle - 1 -.
- Remove bolt - 2 -.
- Tightening torque 24 Nm
