Side-Airbag Wiring, Routing Along Seat Frame

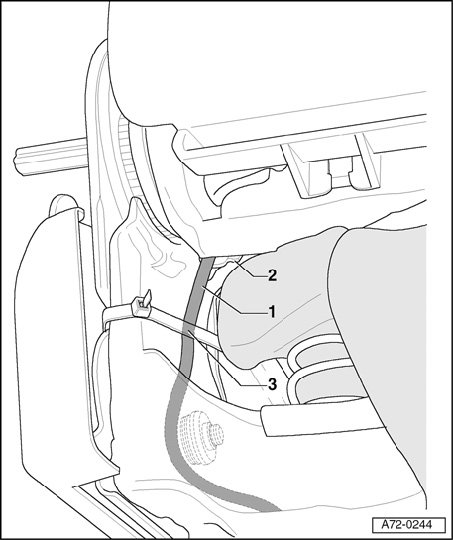

Side-airbag Wiring, Routing Along Seat Frame







1 - Side airbag wiring
- Cut through cable tie
2 - Clip
3 - Cable tie
