Alarm Module: Testing and Inspection

Code Control Module (TT Coupe)

This function can be used to code the interior monitoring as follows:
- Vehicle model: Audi TT
- Priming mode of anti-theft alarm: static
- Body version: Coupe

NOTE:
- The coding sets the ultra-sonic sensor module -G209- according to the requirements of the particular model version and anti-theft alarm system.
- The coding table only gives the coding alternatives which can be used for the Audi TT.

Performing function 07 - "Code control module"

Indicated on display

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -7-.

Indicated on display

Rapid data transfer Q
07 - Code control module

- Confirm input with -Q- button.

Indicated on display

Code control module
Enter code number XXXXX (0-32000)

- Enter the coding:

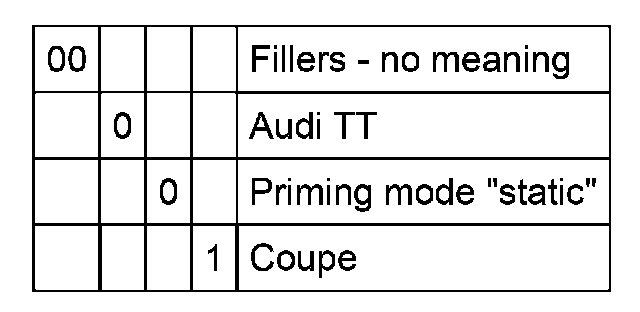

Coding: 00001







Indicated on display

Code control module Q
Enter code number 00001 (0-32000)

- Confirm input with -Q- button.

Indicated on display

8N8951177 Interior Monitor D00 ->
Coding 00001 WSC 06812

- Press -> button to terminate coding procedure.

Indicated on display

Rapid data transfer HELP
Select function XX

- Press buttons -0- and -6- to end the output.

Indicated on display

Rapid data transfer Q
06 End output

- Confirm input with -Q- button.
