Charge Air Cooler Components, Removing and Installing

Charge Air Cooler Components, Removing And Installing

NOTE:
- Various hose connections are secured with clamps.
- Charge air system must be properly sealed.
- When installing, follow installation marks on hoses and components.

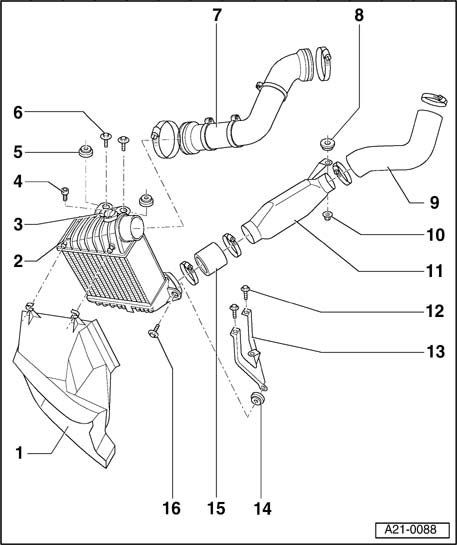

1 - Air duct
2 - Charge air cooler
3 - Charge Air Pressure Sensor -G31-
4 - 10 Nm
5 - Rubber grommet
- with sleeve
6 - 10 Nm
7 - Hose
- between intake manifold and charge air cooler
8 - Rubber grommet
- with sleeve
9 - Hose
- between upper and lower air guide pipe
10 - 10 Nm
11 - lower air guide pipe
12 - 10 Nm
13 - Bracket
14 - Rubber grommet
- with sleeve
15 - Hose
16 - 10 Nm
