Charge Air Cooling System Components, Removing and Installing

Charge Air Cooling System Components, Removing And Installing







NOTE:
- All hose connections must be secured with hose clips (same as original parts).
- Before carrying out tests or repair work, make sure that all lines and hoses are securely connected and that there are no leaks.

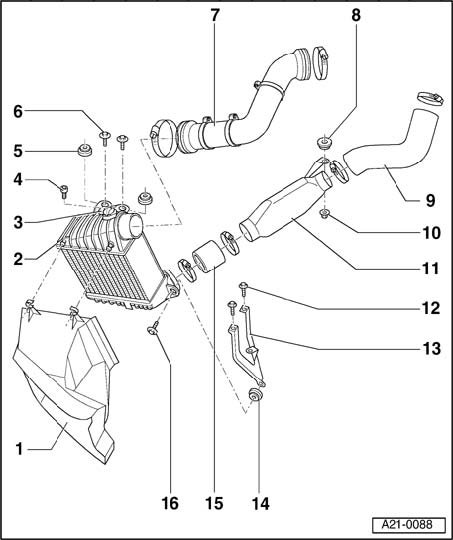

1 - Air ducting
2 - Charge air cooler (intercooler)
3 - Charge air pressure sensor -G31-
4 - 10 Nm
5 - Rubber grommet
- With sleeve
6 - 10 Nm
7 - Hose
- Between intake manifold and charge air cooler (intercooler)
8 - Rubber grommet
- With sleeve
9 - Hose
- Between upper air line and lower air line
10 - 10 Nm
11 - Lower air line
12 - 10 Nm
13 - Bracket
14 - Rubber grommet
- With sleeve
15 - Hose
16 - 10 Nm
