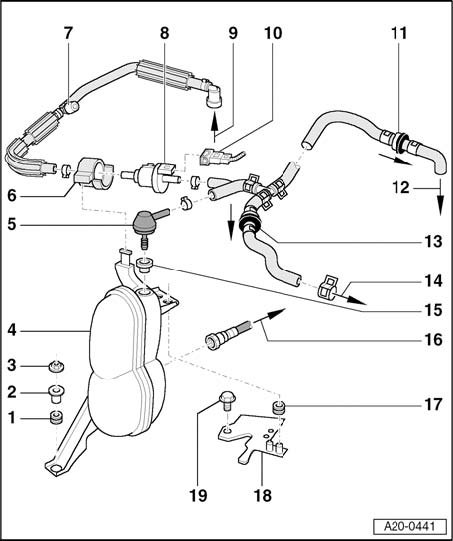

Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-, Component Overview

Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-, Component Overview






NOTE: Arrows on the hose and/or pipe connections must line up across from each other.

1 - Grommet
2 - Bushing
3 - 8 Nm
4 - Vacuum reservoir
5 - Check valve
- Inserted in vacuum reservoir
6 - Bracket
- For Evaporative Emission (EVAP) canister purge regulator valve -N80-
7 - Test connection
8 - Evaporative Emission (EVAP) canister purge regulator valve -N80-
- Checking function and activation
9 - From EVAP canister
10 - 2-pin harness connector
- For Evaporative Emission (EVAP) canister purge regulator valve -N80-
11 - Check valve
- Only vehicles with turbocharger
- Installed position (light/dark half): arrow points in direction of flow, as shown in figure
12 - To intake tubes at turbocharger
- Only vehicles with turbocharger
13 - Check valve
- Only vehicles with turbocharger
- Installed position (light/dark half): arrow points in direction of flow, as shown in figure
14 - To intake manifold
15 - Grommet
16 - To EVAP canister
17 - Grommet
18 - Bracket
- For vacuum reservoir
19 - 8 Nm
