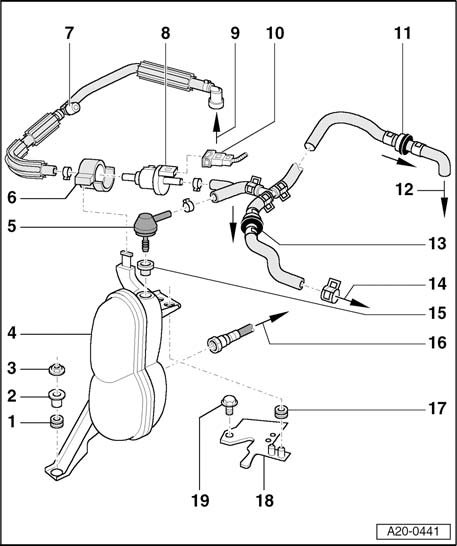

EVAP Canister Purge Regulator Valve and Vacuum Reservoir, Component Overview

EVAP Canister Purge Regulator Valve And Vacuum Reservoir, Component Overview

NOTE: Arrows on the hose/pipe connections must line up across from each other.







1 - Rubber grommet
2 - Bushing
3 - 8 Nm
4 - Vacuum reservoir
5 - Non-return valve
- Inserted in vacuum reservoir
6 - Bracket
- for Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
7 - Test connection
8 - Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
- Component location: Right front in engine compartment
9 - from EVAP canister
10 - Electrical 2-pin connector
- for Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
11 - Non-return valve
- Installation position (light/dark side): Arrow points in direction of aperture, as shown in figure.
12 - to intake tube at exhaust turbocharger
13 - Non-return valve
- Installation position (light/dark side): Arrow points in direction of aperture, as shown in figure.
14 - to Intake manifold
15 - Rubber grommet
16 - to EVAP canister
17 - Rubber grommet
18 - Bracket
- for vacuum reservoir
19 - 8 Nm
