On-Board Diagnostic, Technical Data

On Board Diagnostic, Technical Data

Control Module Identification

The control module version is displayed when "Diagnostic mode 9: Vehicle information" is selected. Diagnostic Mode 09 - Read Vehicle Information

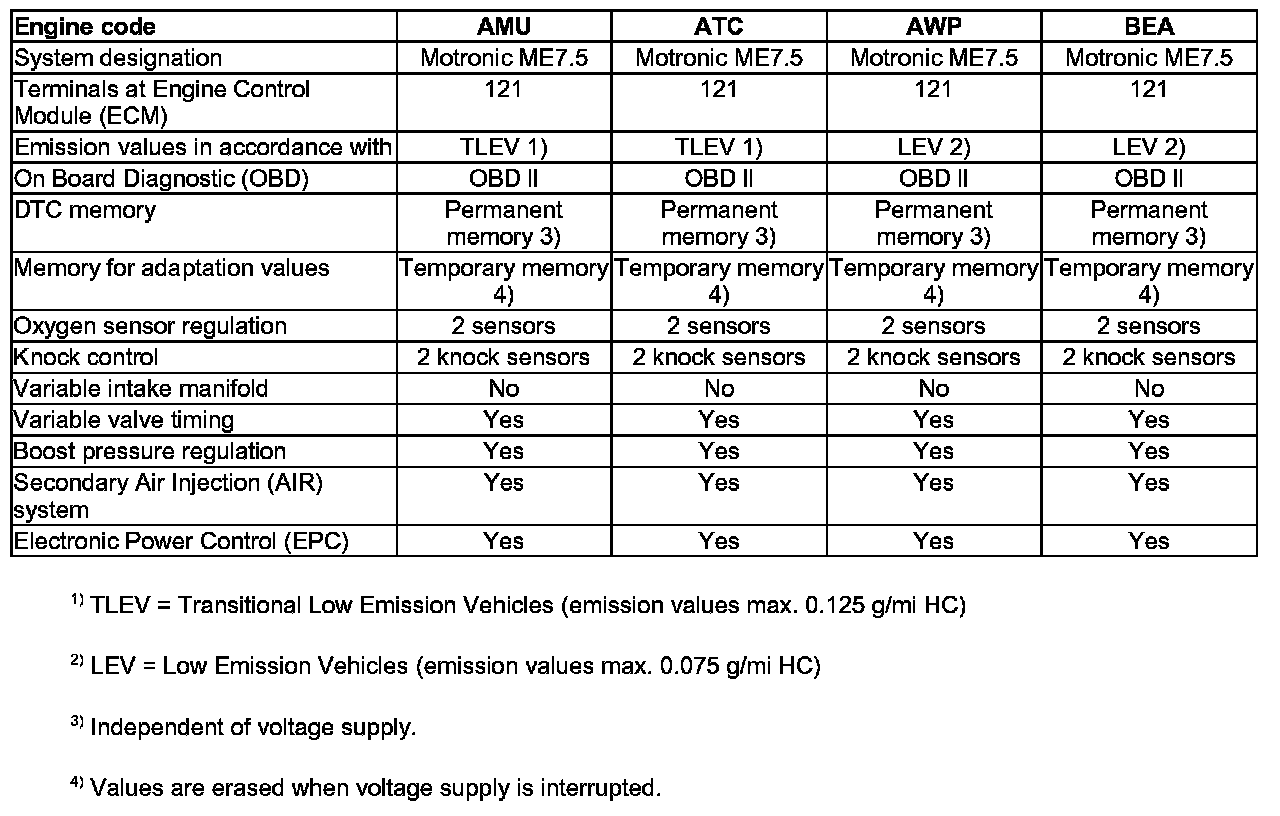

Engine Control Module Equipment







Transmission Control Module Equipment







Code letters and transmission data (arrow 1 and 2)


FAX Transmission code letters
30510 - TFA001 Manufacturers serial number
09G 300 035G Transmission part number
AISIN AW Manufacturing company: AISIN
On Board Diagnostic (OBD OBD II
DTC memory Permanent memory 1)

1) Independent of voltage supply.

Transmission code letters are also listed on the vehicle data plate.
