Electronic Throttle Actuator: Service and Repair

Electronic Power Control Components, Servicing

NOTE: Components marked with are tested via On Board Diagnostic (OBD), Diagnostic mode 3: Check DTC memory.

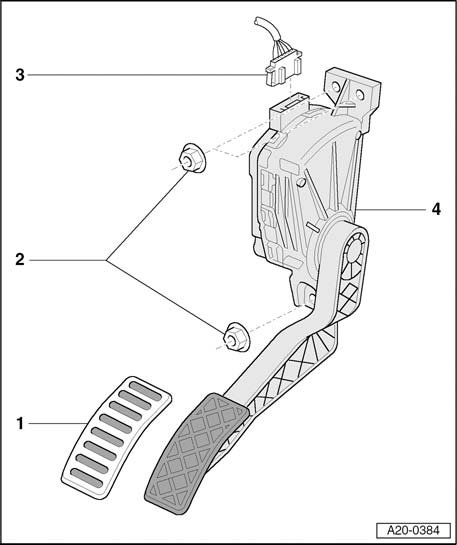

1 - Pedal rubber
2 - 10 Nm
3 - Electrical 6-pin connector
4 - Accelerator pedal module
- with Throttle Position (TP) Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
- Not adjustable
- the throttle position sensor transmits the driver control to the Engine Control Module (ECM)
