Fuse Arrangement In Fuse Panel, Instrument Panel, Left (M.Y. 2001)
Fuse Arrangement In Fuse Panel, Instrument Panel, Left (M.Y. 2001)

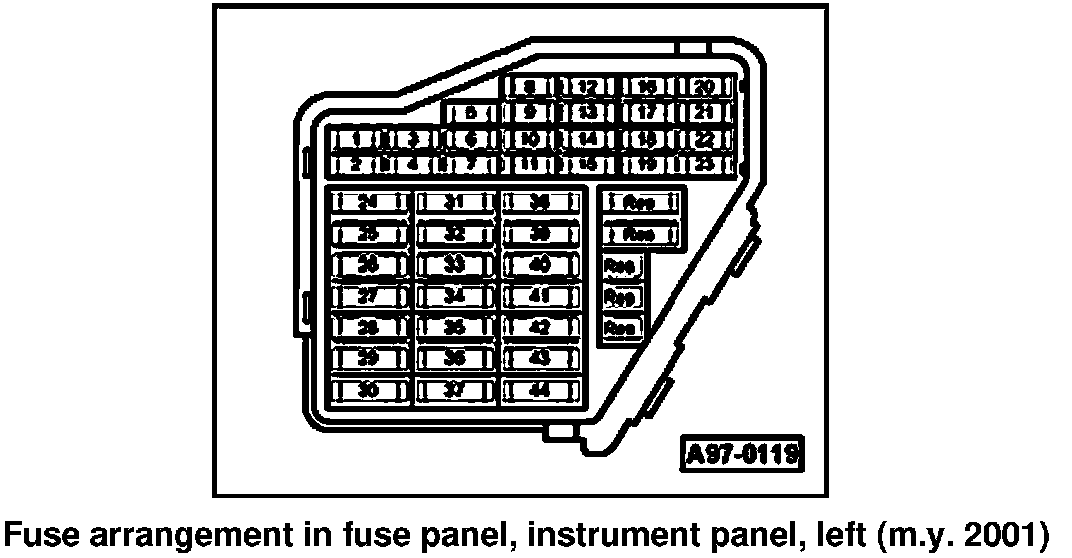

Fuse Arrangement In Fuse Panel, Instrument Panel, Left:

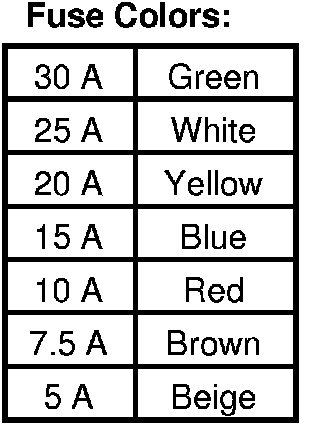

Fuse Colors:

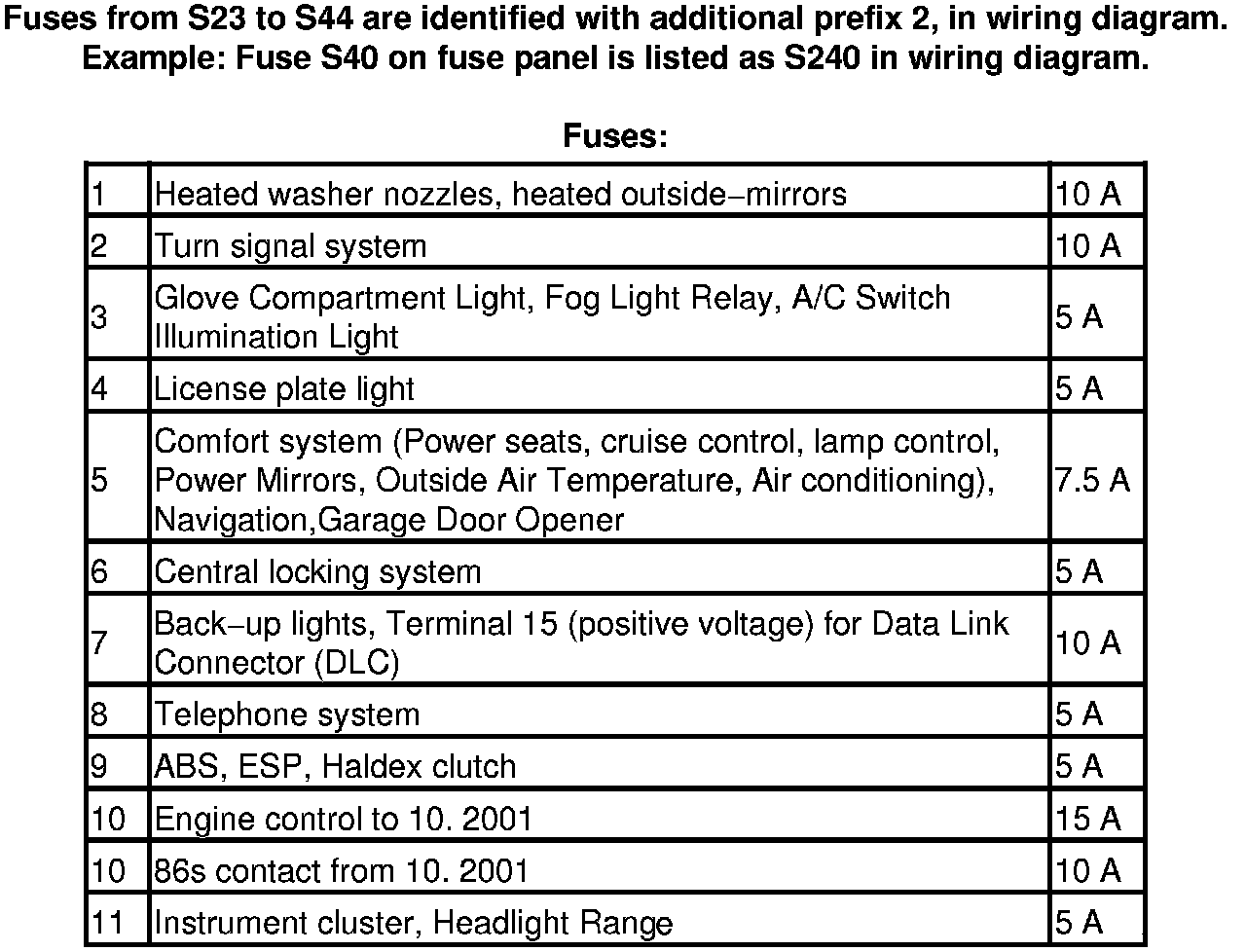

Fuses 1 To 11:

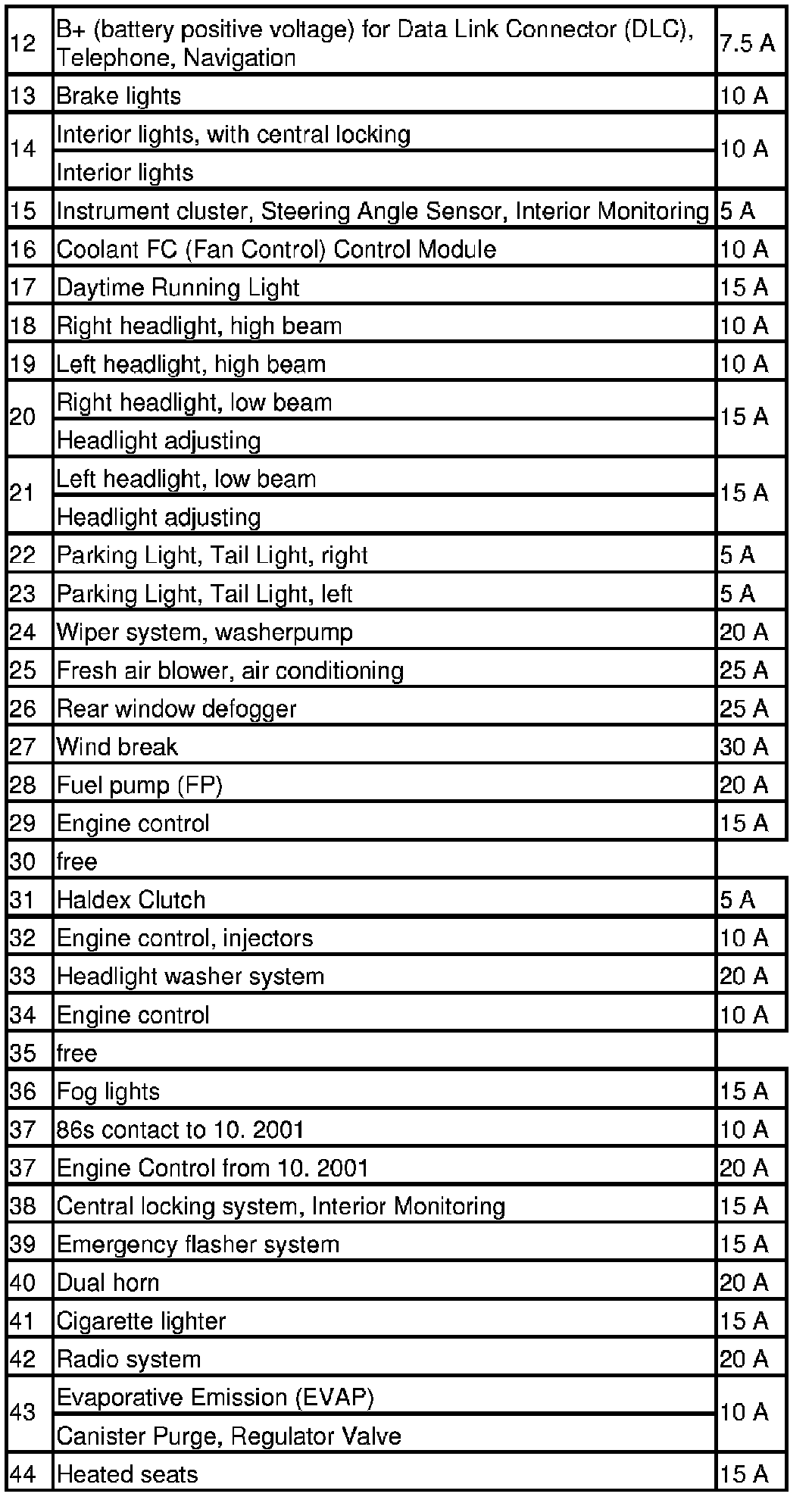

Fuses 12 To 44:
