Home >> Audi >> 2006 >> TT Coupe (8N3) L4-1.8L Turbo (AWP) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> From Model Year 2002 >> Diagrams 35\01

Diagrams 35\01



IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

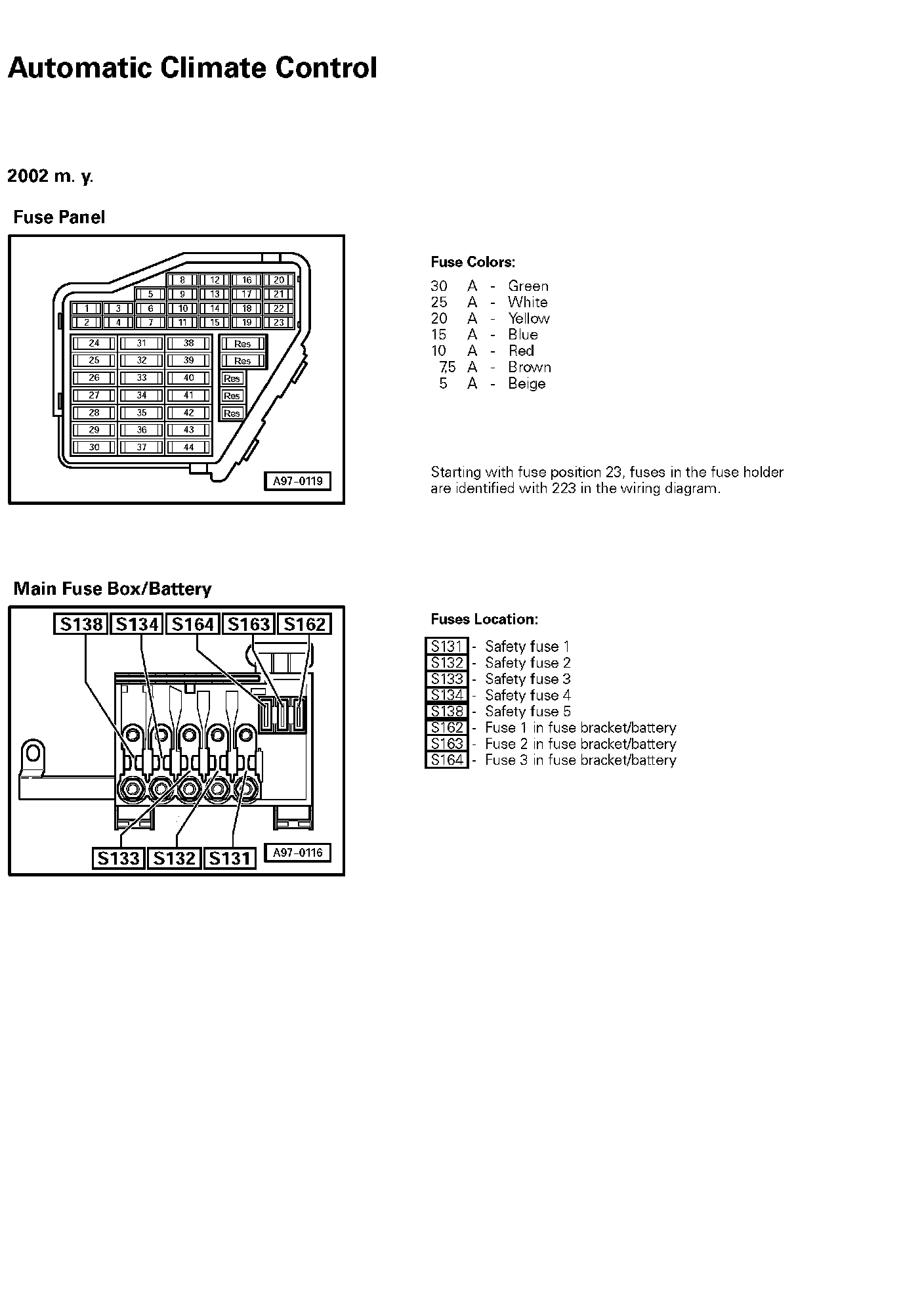

Fuse Panel, Main Fuse Box/Battery
