Water Pump: Service and Repair

Coolant pump, removing and installing

Note:
Always replace seals and gaskets.

Removing





- Remove engine cover.





- Disconnect air duct at bottom of right side longitudinal member (air duct leads to charge air cooler).
- Drain cooling system.

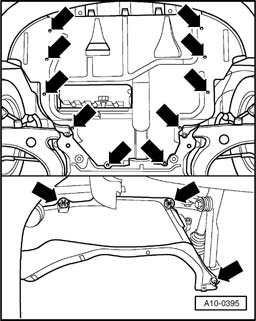

- Remove center and right side sections of sound insulation (arrows).
- Remove ribbed belt and tensioning element.
- Disconnect vacuum hose from EVAP canister and from throttle valve connection.





- Remove coolant expansion tank (left arrows) together with hoses.
- Unbolt power steering reservoir (right arrow). Do not disconnect hoses.
- Remove toothed belt guards (upper and center).

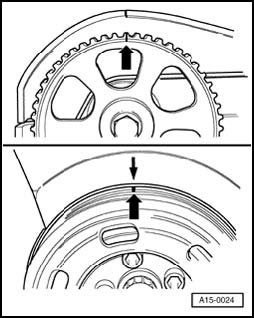

- Set crankshaft to markings for TDC of No. 1 cylinder (arrows) by turning central bolt on crankshaft sprocket in direction of rotation.





- Screw M5 x 55 stud -1- into toothed belt tensioning element. Screw hex nut -2- onto stud -1- using large washer -3-.
- Tension pressure piston of tensioning element only until it can be secured with a locking pin (e.g. from lifting appliance 2024 A) arrow-.

Note:
If it is not possible to insert the locking pin, carefully tension the pressure piston of the tensioning element just enough to allow the toothed belt to be removed.

- Remove toothed belt from camshaft sprocket.

Note:
^ The vibration damper and bottom toothed belt guard do not have to be removed.
^ The toothed belt should be left in position on the crankshaft sprocket.
^ Cover toothed belt with a cloth to protect it from coolant before removing coolant pump.

Vehicles with air conditioning

- Remove lower air duct.

All models





- Remove coolant pump securing bolts -1- and remove coolant pump -2-.

Installing

Installation is performed in the reverse order, noting the following:

- Clean and smooth down sealing surface for O-ring as required.
- Moisten new O-ring with coolant G 012 A8 D.
- Install coolant pump. Installation position: plug in housing faces downward.
- Install toothed belt (adjust valve timing).

Note:
Follow all the instructions on removing and installing the toothed belt.

- Install ribbed belt and tensioning element.
- Fill with coolant.

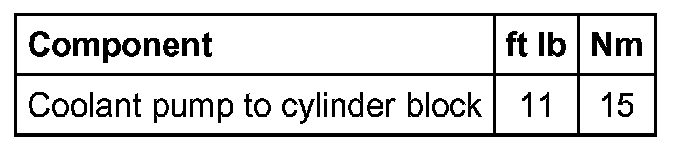

Tightening torque
