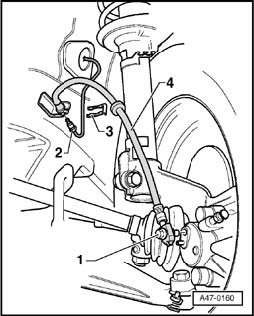

Front Wheel Brake Lines, FWD, Removing and Installing

Front Wheel Brake Lines, FWD, Removing and Installing

1. Banjo bolt - 35 Nm
2. Brake line - 14 Nm
3. Retaining clip
4. Brake hose
