FN 3

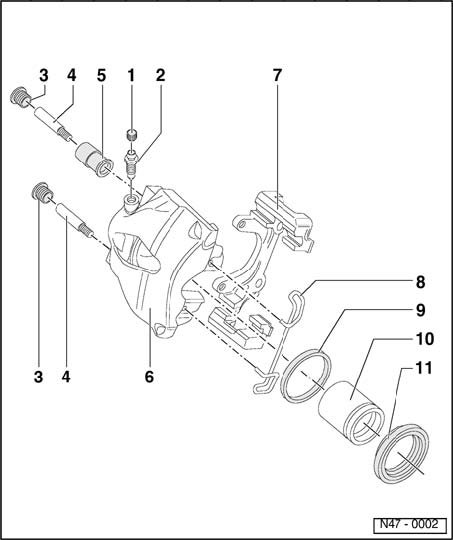

Brake Caliper, FN 3, Assembly Overview





1 - Protective seal

2 - Bleed screw - 10 Nm

^ Apply thin coat of assembly paste G 052 150 A2 to threads before screwing in

3 - Cap

^ Insert in mounting bushing

4 - Guide pin - 28 Nm

5 - Mounting bushing

^ Insert into brake caliper housing

6 - Brake caliper housing

7 - Brake carrier

8 - Retaining spring

^ Insert both ends in the holes in brake caliper housing

9 - Seal

^ Do not damage when inserting piston

10 - Piston

^ Apply thin coat of assembly paste G 052 150 A2 to piston

11 - Protective seal

^ Pull outer sealing lip onto piston
