Front

ABS wheel speed sensor, removing and installing

Removing

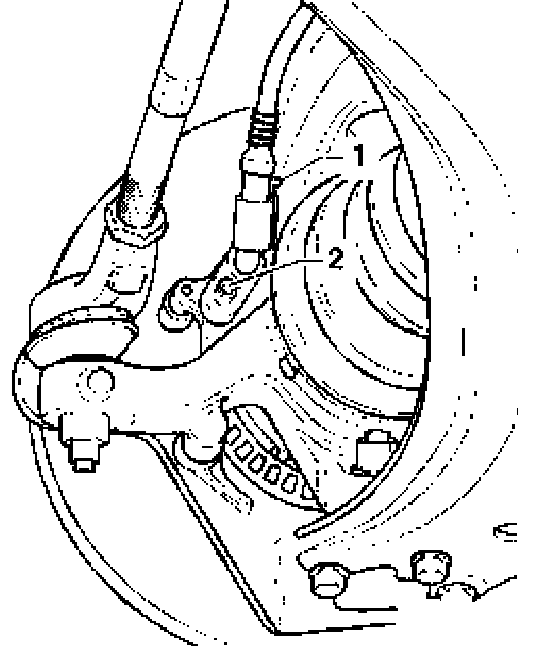

^ Release connector -1- on wheel speed sensor and disconnect wiring.
^ Unscrew bolt -2-.
^ Pull speed sensor out of wheel bearing housing.

Installing
Install in reverse sequence; note the following points:
^ Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with solid lubricant paste G 000 650.
^ Turn wheels fully onto left and right-hand lock and check clearance to speed sensor wiring.

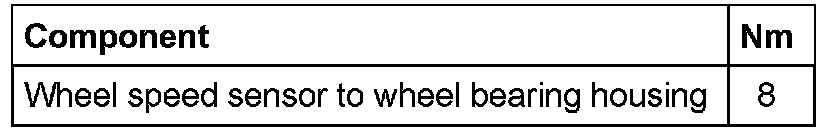

Tightening torque
