TT Coupe (8N3) L4-1.8L Turbo (AWP)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electrical Testing
>>
ABS/EDL and ABS/EDL/ASR ITT Mark 20 IE
>>

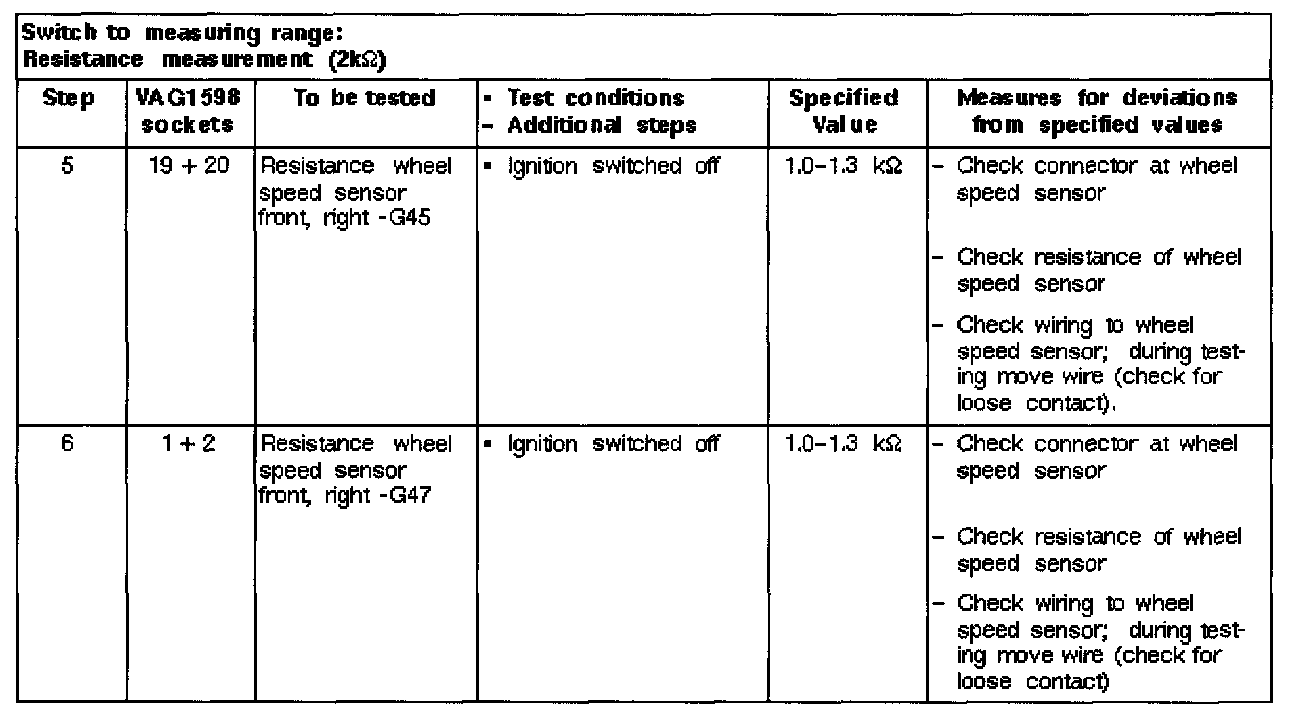

Electrical Test Table
>>
Tests 5 and 6
Tests 5 and 6
