Fabric Cover and Padding For Split Rear Backrest, Removing and Installing

Fabric Cover And Padding For Split Rear Backrest, Removing And Installing

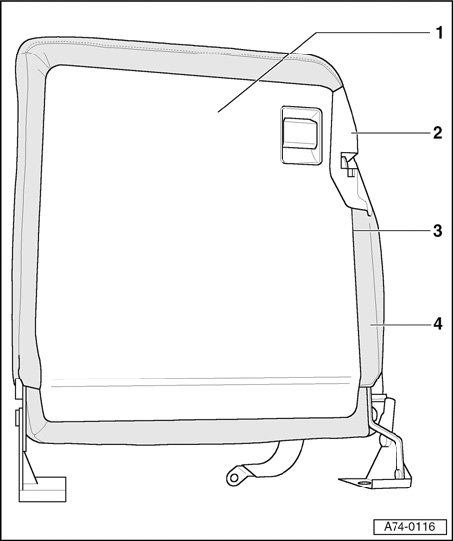

1 - Rear backrest
2 - Lock trim
3 - Fastening strip
4 - Backrest cover

- Removing
- Remove backrest.
- Remove lock trim - 2 -.
- Starting at latch, pry fastening strip - 3 - on cover - 4 - away from rear backrest - 1 -.

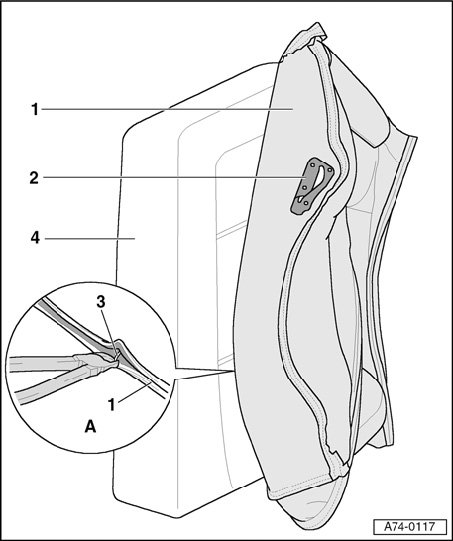

1 - Backrest cover
- Roll backrest cover - 1 - forward.
- Cut through staples - 3 - on front side and remove backrest cover.
- Use upholstery stapler V.A.G 1634/to install new staples.
- Pull seat belt through cut-out - 2 -.
2 - Cut-out
3 - Staples
4 - Padding
