Luggage Compartment Side Trim

Luggage Compartment Side Trim

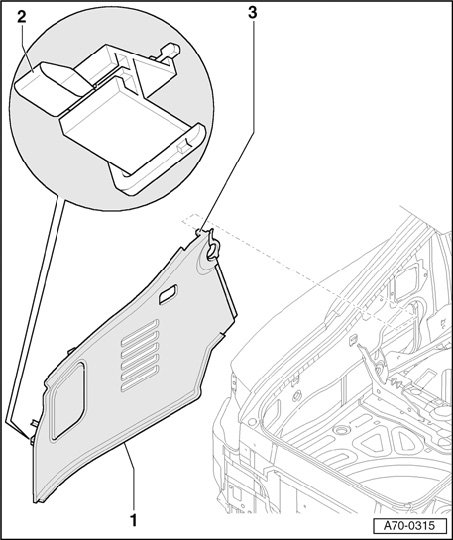

1 - Luggage compartment trim

- Removing
- Remove striker pin on rear backrest
- Remove luggage compartment floor lining
- Remove luggage compartment light on left side
- Release luggage compartment side trim - 1 - from clips - 2 - (6x) starting at top rear.

- Installing
- Fasten retainer tab - 3 - in C-pillar trim.
- Make sure tailgate seal is correctly positioned after installing trim.







2 - Clips
3 - Retainer tab







Removing luggage compartment light
- Arrow indicates direction of travel
- Use screwdriver to pry out light - 1 - at Item - 3 -.
- Disconnect harness connector - 2 -.
