Upper A-Pillar Trim, Removing and Installing

Upper A-pillar Trim, Removing And Installing

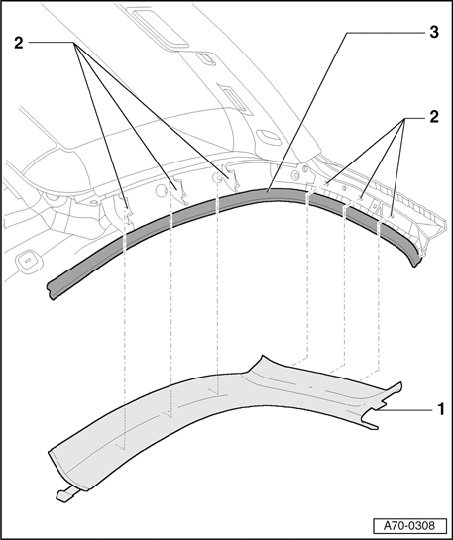

1 - Upper A-pillar trim

- Removing
- Unclip upper C-pillar trim in area of upper A-pillar trim - 1 -
- Unclip upper A-pillar trim - 1 - starting at the top.
- Lift out upper A-pillar trim upward - 1 -.

- Installing
- First push upper A-pillar trim - 1 - between instrument panel and A-pillar.
- Clip in trim - 1 - and position door seal - 3 - over A-pillar trim.

2 - Mountings
3 - Seal
- After installing, ensure seal is correctly fitted.
