Floor Covering, Removing and Installing

Floor Covering, Removing And Installing

- Removing
- Removing and installing front left/right seat.
- Remove rear seat bench.
- Remove glove box.
- Remove drivers storage compartment.
- Remove side trim.
- Remove grab handles on center console.
- Remove rear section of center console.
- Remove footwell vent trim.
- Remove footwell vent.







- Remove plugs - 2 - (2x).
- Remove steering column trim - 1 -.
- Remove accelerator pedal stop - 3 -.
- Remove trim for accelerator pedal stop - 4 -.
- Remove lower left and right A-pillar trim.
- Remove sill panel trim.
- Remove foot rest.







- Unbolt outer seat belt anchorage point.

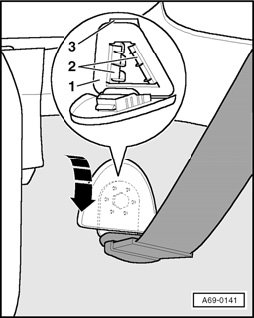

- Flip open flap of cover - 1 - in direction of arrow.
- Remove bolt.
- Tightening torque 55 Nm
- To remove cover - 1 - pull tabs - 2 - (2x) inward.
- Pull out cover - 1 - from underneath carpeting.
- On models with automatic transmission, remove locking cable at selector housing







- Cut through cable ties - 2 - at wiring harness for front seats - 3 -.
- Feed wiring harness - 3 - downward through cut-out - 1 -.
- Pull parking brake up as far as it will go.

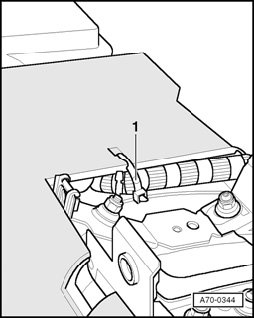

- Cut through cable tie at center console - 1 -.
- Move gear shift/selector lever as far back as possible.
- Lift rear section of floor covering over parking brake lever.
- Pull floor covering backward and lift over gear shift/selector lever.
- Fold floor covering lengthwise and remove through door.

- Installing
- Fold new floor covering lengthwise and place in vehicle.

NOTE: Floor covering is liable to tear at cut-outs.

- Push floor covering forward as far as it will go until hole patterns for accelerator pedal stop and foot rest are aligned.
- Press floor covering under parking brake lever.
- Carry out remainder of installation in reverse order of removal.
