Front Door

Window Crank

Removing

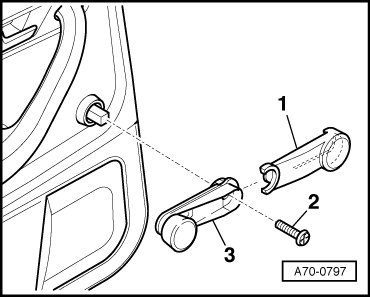

- Pull off cover - 1 - of manual window crank - 3 - upward.





- Remove bolt - 2 - of manual window crank - 3 -.

- Remove manual window crank - 3 - upward.

Installing

To install, perform the steps used in removal in reverse order. Observe the following when doing so:

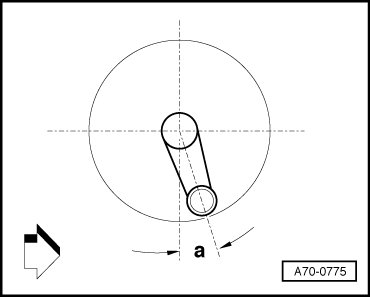

- Installation position - a - must be adjusted by 5° ± 20° with window closed.
