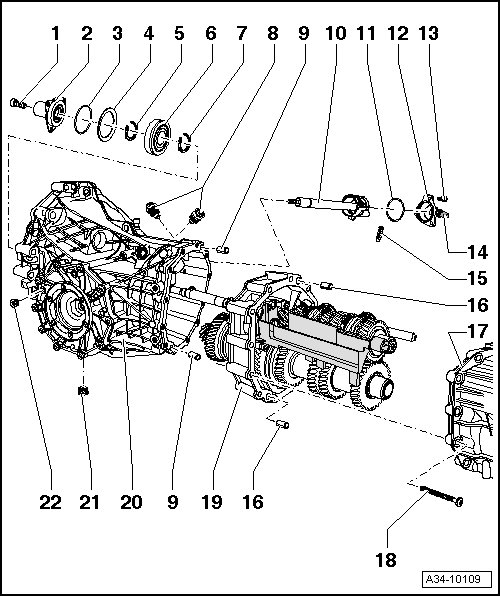

Input Shaft Bearing, Transmission Cover, Bearing Housing and Selector Shaft Assembly Overview
Input Shaft Bearing, Transmission Cover, Bearing Housing and Selector Shaft Assembly Overview
Transmission disassembling and assembling, refer to => [ Transmission ] Transmission.
1 Torx bolt, 35 Nm
• Quantity: 3
• Apply locking fluid (AMV 185 101 A1) when installing.
2 Guide sleeve
• With seal.
• Removing and installing, refer to => [ Transmission ] Transmission.
3 O-ring
• Always replace.
4 Dished spring
• Smaller diameter (convex side) faces guide sleeve => [ (Item 2) Guide sleeve ].
5 Circlip
• Note thickness.
• Redetermining thickness, refer to => [ Determining thickness for circlip
in front of the input shaft ball bearing ] 01X Transmission.
6 Ball bearing
• Removing and installing, refer to => [ Transmission ] Transmission.
7 Circlip
• Note thickness.
• Redetermining thickness, refer to => [ Determining thickness for circlip
behind input shaft ball bearing ] 01X Transmission.
8 Locking bolt, 45 Nm
• Quantity: 2
• Apply locking fluid (AMV 185 101 A1 ) when installing.
9 Dowel sleeve
• Quantity: 2
• Insert in transmission housing.
• Remove and install with drift (3121).
10 Selector shaft with selector cylinder
• Removing and installing, refer to => [ Transmission ] Transmission.
11 O-ring
• For selector shaft cover.
• Always replace.
• Lubricate with gear oil.
12 Cover for selector shaft
• With back up lamp switch (F4).
• Removing and installing, refer to => [ Transmission ] Transmission.
13 Bolt, 24 Nm
• Quantity: 3
• Apply locking fluid (AMV 185 101 A1 ) when installing.
14 Back up lamp switch (F4), 20 Nm
15 Pin
• For selector shaft stop.
• Insert in transmission housing.
• Installation position: groove on threaded pin points toward selector shaft cover.
16 Dowel sleeve
• Quantity: 2
• Insert in bearing housing.
• Remove and install with drift (3121).
17 Transmission cover
• Disassembling and assembling, refer to => [ Transmission Cover ] Transmission Cover.
• If only the transmission cover is removed from the manual transmission, the bearing housing => [ (Item 19) Bearing housing ] must be removed as well so that new sealant can be applied between transmission housing and bearing housing.
18 Bolt, 35 Nm + an additional 90° 1/4 turn
• Quantity: 12
19 Bearing housing
• 3rd to 6th gear assembly overview, refer to => [ 3rd to 6th Gear Assembly Overview ] 3rd to 6th Gear Assembly Overview.
• Input shaft, output shaft with selector gear for 1st and 2nd gear, reverse gear wheel and reverse selector gear assembly overview, refer to => [ Input and Output Shafts, Reverse Gear Wheel and Selector Gear Assembly Overview ] Input and Output Shafts, Reverse Gear Wheel and Selector Gear Assembly Overview.
• Disassembling and assembling, refer to => [ Bearing Housing ] Bearing Housing.
20 Transmission housing
• With differential and flange shafts.
• Removing and installing differential, refer to => [ Differential ] Differential.
• Disassembling and assembling, refer to => [ Transmission Housing ] Transmission Housing.
21 Oil drain plug, 45 Nm
22 Oil filler plug, 45 Nm
