Location of Shims

Location of Shims

• Adjustment overview when replacing individual components of differential. Refer to => [ Adjustment Overview ] Adjustment Overview.

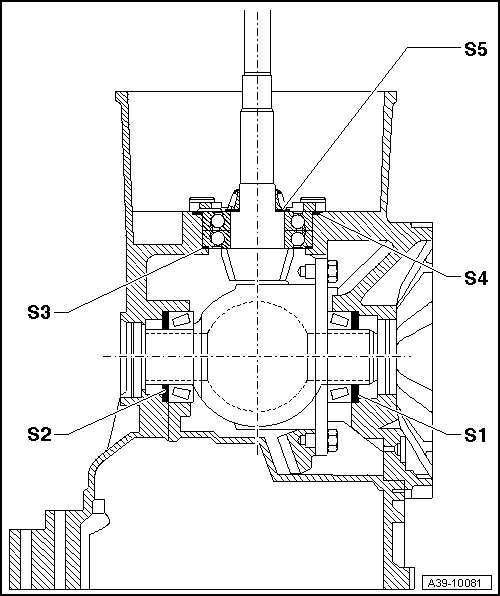

S1 - Ring gear adjustment shim in final drive cover

S2 - Shim for ring gear in transmission housing

S3 - Shim for positioning drive pinion in transmission housing

S4 - Shim for pre-load of double angular contact ball bearing on drive pinion

S5 - Shim for positioning inner race/tapered roller bearing on drive pinion

• Shim, determining, refer to => [ Redetermining Shim S5 for Positioning Inner Race/Tapered Ball Bearing ] Redetermining Shim S5 for Positioning Inner Race/Tapered Ball Bearing.
