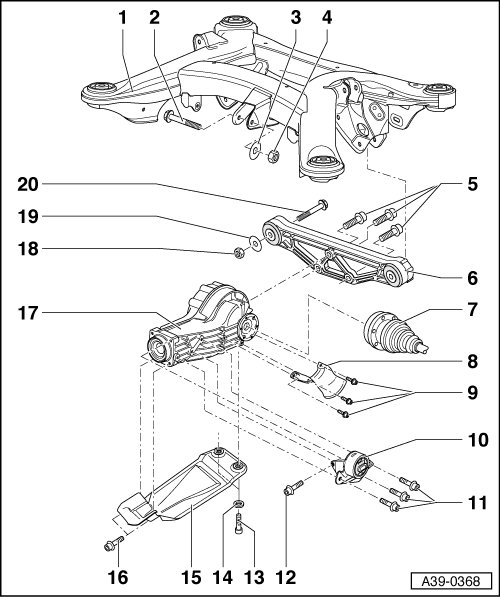

Rear Final Drive Overview

Rear Final Drive Overview





1 Subframe

• Removing and installing => Suspension Suspension

2 Hex bolt

3 Washer

4 Nut, 40 Nm

• Self-locking

• Replace

5 Hex socket head bolt, 55 Nm

6 Rear tunnel brace

7 Drive axle

• Removing and installing => Suspension Suspension

8 Heat shield

9 Bolt and washer assembly, 25 Nm

10 Transmission support

• Observe assembly sequence

11 Hex socket head bolts, 40 Nm plus an additional 90° ( 1/4 turn).

• Replace

12 Hex socket head bolts, 40 Nm plus an additional 90° ( 1/4 turn).

• Replace

13 Not installed

14 Not installed

15 Not installed

16 Not installed

17 Rear final drive

• Removing and installing => [ Rear Final Drive ] Rear Final Drive

18 Nut

• Self-locking

• Replace

• Tightening torque

19 Washer

20 Hex bolt
