Vehicles through VIN 8E 6A156499

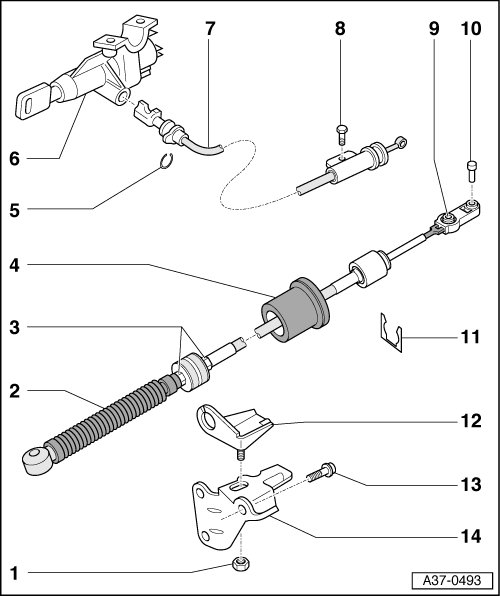

Selector Lever Cable and Locking Cable Assembly Overview

• Do not bend or kink the selector lever cable.

• Lightly grease the eyelet and ball socket with polycarbamide grease (G 052 142 A2) before installing.





1 Nut

• 23 Nm

2 Selector lever cable

• Do not bend or kink, lightly grease the cable eye and the ball socket before installing.

• Removing and installing, refer to => [ Selector Lever Cable ] Selector Lever Cable.

• Adjusting, refer to => [ Selector Lever Cable Adjusting ] Adjustments.

• In case of damaged rubber boots, the selector lever cable must be replaced.

• When installing, make sure that rubber sleeve on the transmission side is not twisted.

3 Lock nuts

• 13 Nm

4 Boot for selector lever cable

• To be buttoned into the selector mechanism bottom cover.

5 Retaining clip

6 Ignition/starter switch

• With the ignition key removal lock.

7 Locking cable

• For ignition key removal lock.

• Not to be kinked.

• Removing and installing, refer to => [ Locking Lever ] Locking Lever.

• Adjusting, refer to => [ Locking Lever Adjusting ] Adjustments.

8 Bolt

• 9 Nm

9 Clamping screw

• 13 Nm

• For selector lever cable.

• Loosen 1 turn for adjusting, do NOT remove completely.

10 Pin

• For selector lever cable.

• To remove the selector lever cable, move the plastic retaining spring at the selector mechanism forward slightly and put the screws upward, only as far as necessary.

11 Retaining clip for selector lever cable

12 Bracket for selector lever cable

13 Bolt

• 23 Nm

14 Bracket for selector lever cable
