Torque Converter, Draining






Torque Converter, Draining

Special tools, testers and auxiliary items required

Oil siphoning unit (VAG1358A)

Oil syphoning probe (VAG1358 A/1)

In case of soiling of the ATF via shavings, torque converter must be drained:

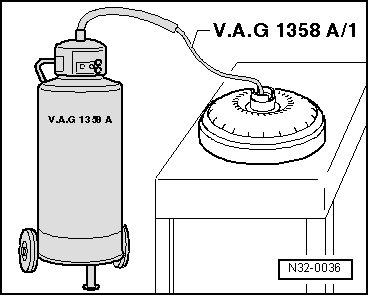

- Drain ATF from torque converter using oil siphoning unit (VAG1358A) and Oil syphoning probe ( VAG1358 A/1).
