Hard Shifting, Slipping in 4th and 5th Gear

Hard Shifting, Slipping in 4th and 5th Gear

• Possible damage:

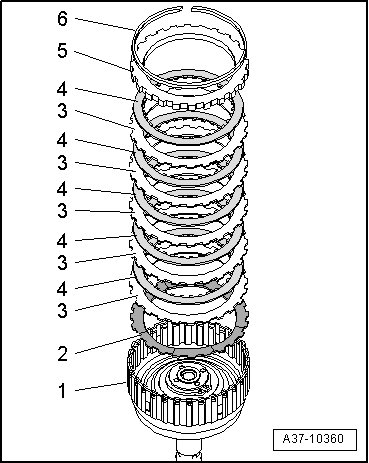

Plates - 3 - of clutch "E" burnt out.





• Cause:

Worn or faulty torque converter clutch

• Required actions:

- Check torque converter clutch while driving. Refer to => [ Torque Converter Clutch, Checking ] Torque Converter Clutch, Checking.

- Completely disassemble and clean transmission.

- Clean ATF lines and ATF cooler.

- Disassemble and check all clutches.

- If there is heavy contamination. Refer to => [ Evaluating Wear by ATF ] Evaluating Wear by ATF, replace torque converter (cannot be cleaned).

- Replace components - 2 to 5 - of clutch "E ".

- Replace overheated cylinder "E" - 1 - (blue color).

- Replace ATF filter => [ Replace ATF filter. ] Planetary Gear.
