Transmission Input Speed Sensor, With Hydraulic Control E17

Transmission Input Speed Sensor, with Hydraulic Control E17

• On a transmission with hydraulic control "E17", Transmission Input Speed (RPM) Sensor (G182) is an inductive sensor (secured on underside of valve body).

• The allocation of the hydraulic control can be found in Technical Data.

Removing

- Remove valve body. Refer to => [ Valve Body ] Valve Body.

- Rotate valve body.

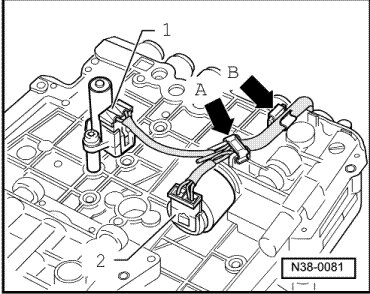

- Disconnect electrical harness connector at Transmission Input Speed (RPM) Sensor (G182) - 1 -.





• Ignore - arrows - and - 2 -.

- Remove bolts and remove Transmission Input Speed (RPM) Sensor (G182) - 1 -.





• Disregard - 2 -.

Installing

Installation is in reverse order or removal, note the following:

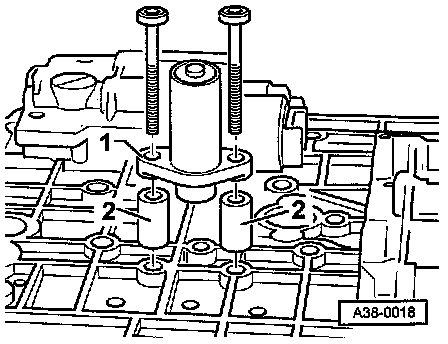

- Position Transmission Input Speed (RPM) Sensor ( G182) - 1 - with spacer sleeves - 2 - on valve body and tighten bolts.

• Spacer sleeve height: 20 mm.

• Installation position: Transmission Input Speed (RPM) Sensor (G182) contacts face toward center of valve body.

- Install valve body. Refer to => [ Valve Body ] Valve Body.

- Fill ATF. Refer to => [ ATF, Changing or Filling after Repairs ] .

Tightening specification
