Tightening Torques

Tightening torques

Note:

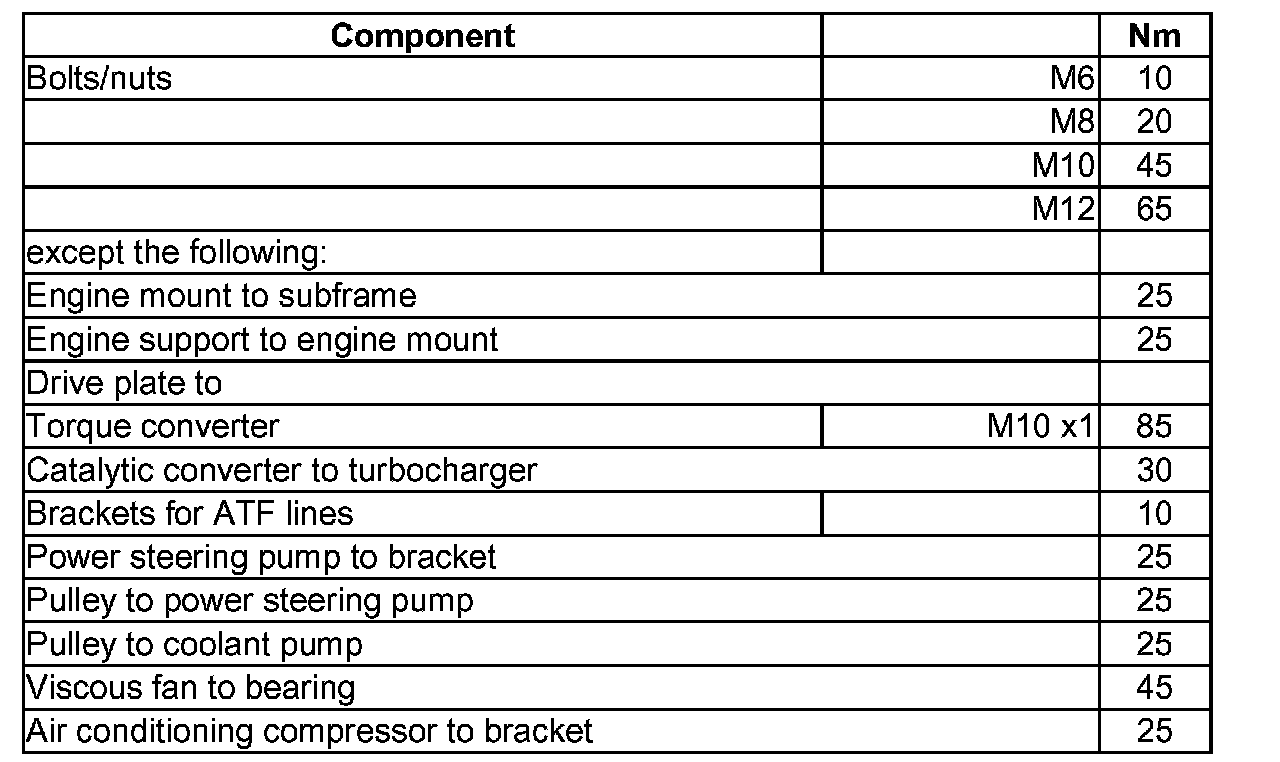

^ The tightening torques listed in this section apply only to lightly greased, oiled, phosphated, or black-finished nuts and bolts.
^ Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.
^ Do not use degreased parts.
^ Tolerance for tightening torques is ± 15%.

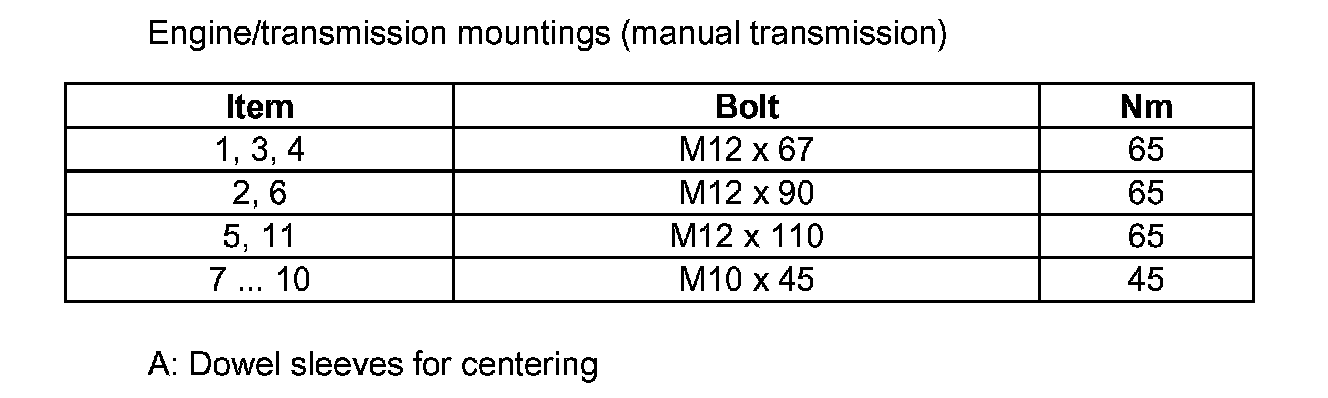

Engine/Transmission Mountings (Manual Transmission):

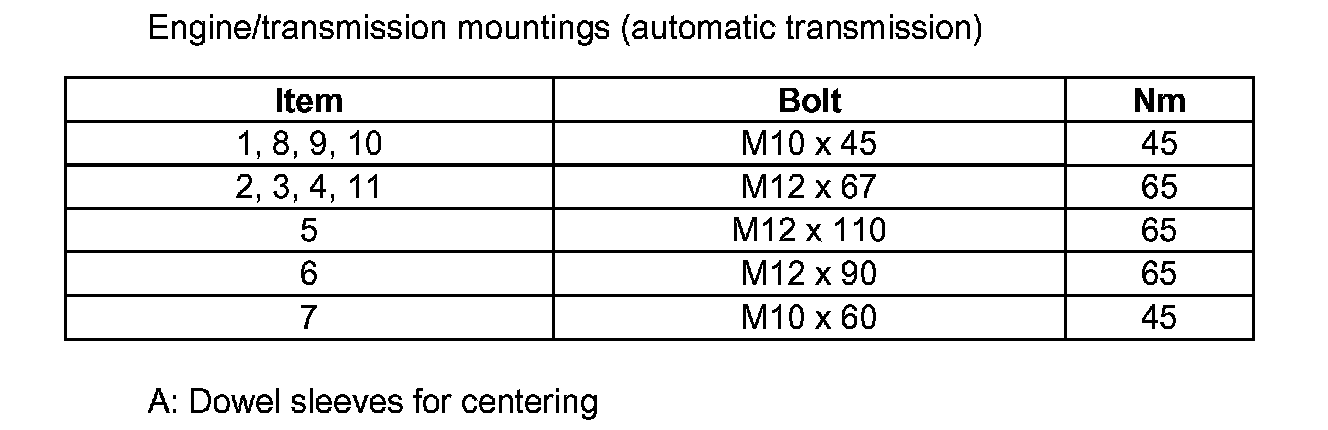

Engine/Transmission Mountings (Automatic Transmission):

Cylinder Head
Replace cylinder head bolts.





Tighten cylinder head bolts in two stages in sequence shown as follows:
Tighten using torque wrench:
Step 1 40 Nm
Tighten with normal fixed wrench:
Step 2 180 ° (1/2 turn) further (2 x 90 ° turns permissible)

Intake Manifold
Tighten 10 Nm

Camshaft Bearing Cap





Bearing caps to cylinder head 10 Nm

Tighten bearing caps 2 and 4 of intake and exhaust camshafts alternately in diagonal sequence (watch position of dowel sleeves).

Main Bearing Caps
Tighten 65 Nm + 1/4 turn (90 ° further)

Connecting rod bearing cap
Tighten 30 Nm + 1/4 turn (90 ° ) further

Vibration damper/pulley
Collared bolt 10 Nm + 90°

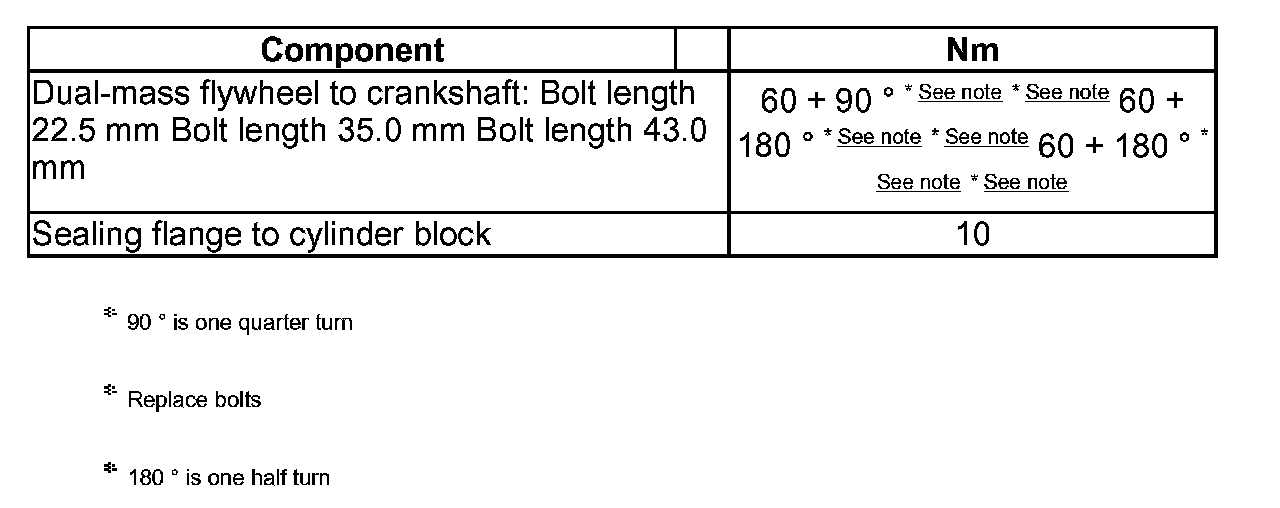

Dual-mass flywheel

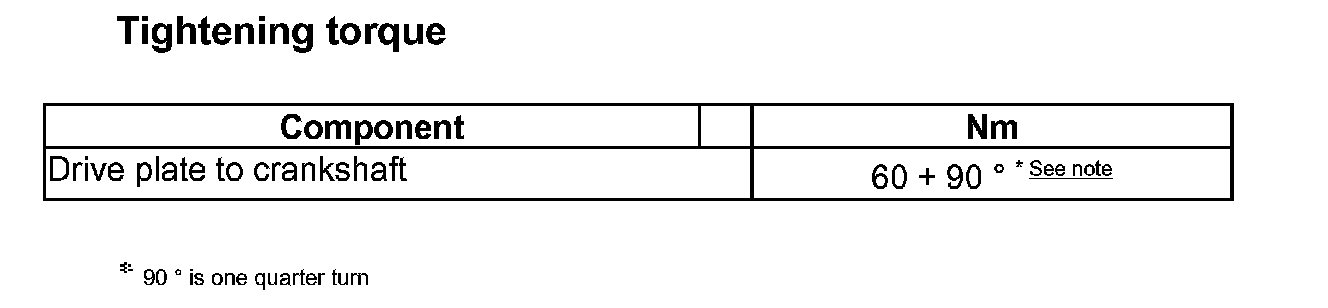

Drive plate

Tightening Torque:

Oil Pump
Oil pump to cylinder block 16 Nm

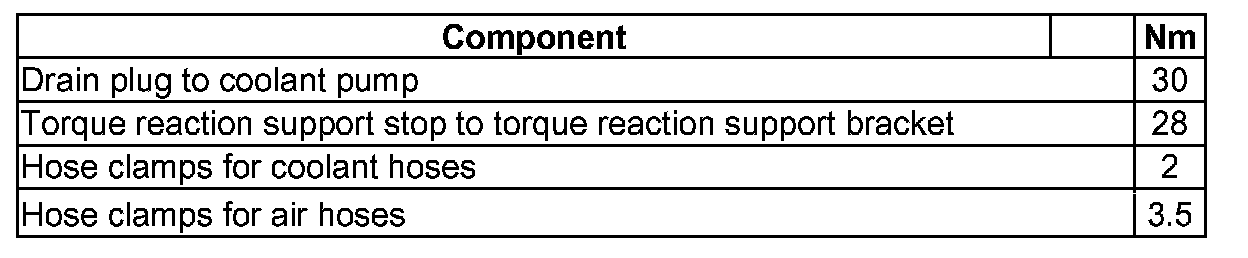

Coolant Pump
Tightening torque 15 Nm
