Home >> Audi >> 2006 >> A4 Cabriolet (8H7) L4-1.8L Turbo (AMB) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> 01VA Transmission >> Fastener Tightening Specifications - Controls, Housing

Fastener Tightening Specifications - Controls, Housing

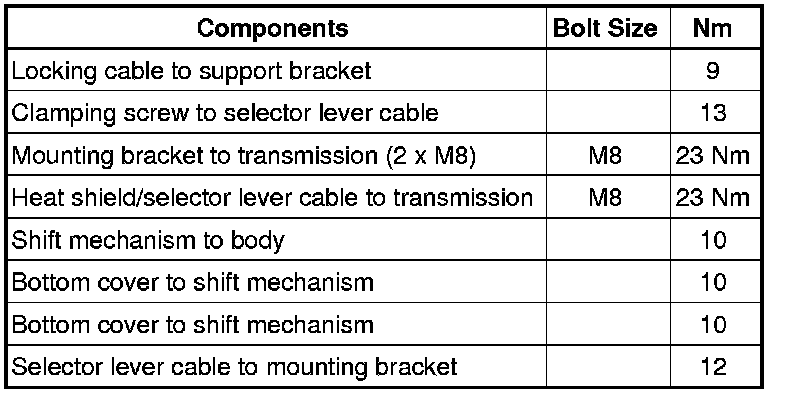

Fastener Tightening Specifications

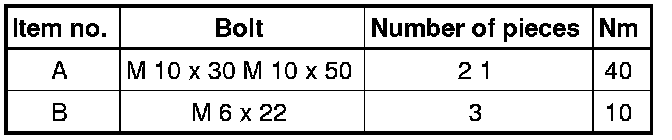

Tightening specifications for left and right transmission supports

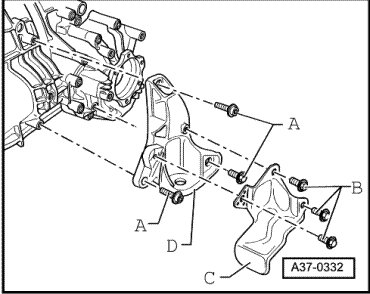

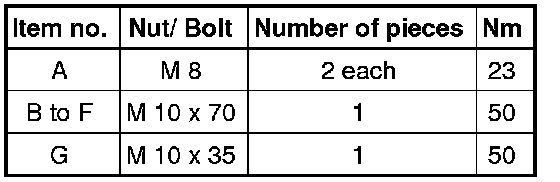

Tightening specifications for left transmission support

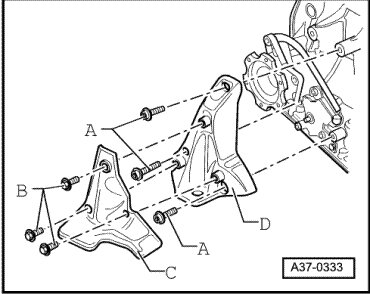

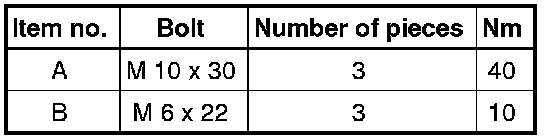

Tightening specifications for right transmission support
