Clutch Pedal Starter Interlock Switch

Clutch Pedal Starter Interlock Switch

• In order to guarantee sufficiently secure seating, the Clutch Pedal Starter Interlock Switch (F194) may only be installed once.

Removing

- Remove storage compartment on driver side.

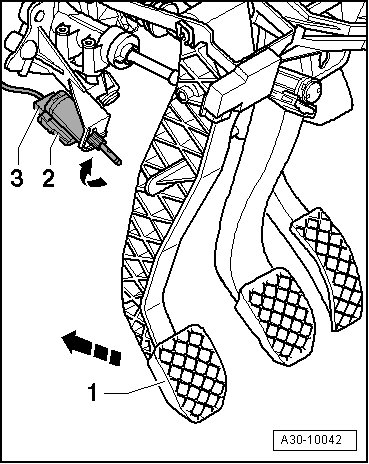

- Disconnect electrical harness connector - 3 - from Clutch Pedal Starter Interlock Switch (F194).





- Completely depress clutch pedal - 1 - and hold in this position.

- When doing so, release Clutch Pedal Starter Interlock Switch (F194) - 2 - by turning 45° in direction of - arrow - and remove from guide.

Installing

- Now, before installing clutch pedal switch, push plunger - arrow - in completely.

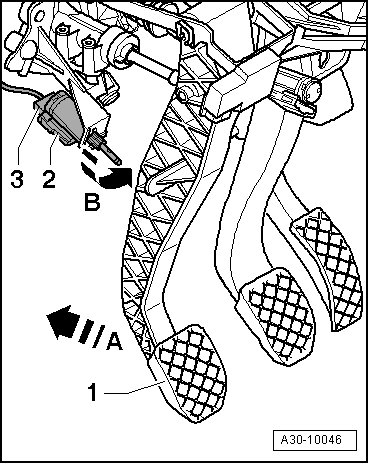

- When installing Clutch Pedal Starter Interlock Switch (F194), completely depress clutch pedal - 1 - in - direction of arrow A -. Hold clutch pedal firmly in this position.





- Guide Clutch Pedal Starter Interlock Switch ( F194) - 2 - through assembly opening while pressing plunger against clutch pedal and securing switch by turning 45° in - direction of arrow B -.

- Connect Clutch Pedal Starter Interlock Switch ( F194) connector - 3 -.

- Install storage compartment on driver side.
