Oil Level Sensor: Service and Repair

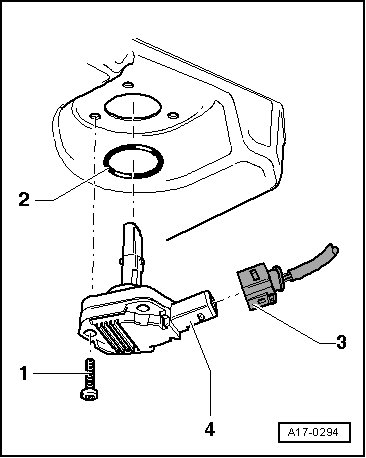

Oil Level Thermal Sensor





1. Bolt - 10 Nm; self-locking, replace

2. Sealing ring; replace

3. Electrical harness connector

4. Oil Level Thermal Sensor (G266)
