Steering Angle Sensor: Service and Repair

Steering Angle Sensor G85, Removing And Installing

NOTE: Should the Steering Angle Sensor G85 require replacement, follow applicable component "Replacement" as well as "zero - calibrate" procedure using VAS 5051/5051 in operating mode "Guided Fault Finding".

Removing
- Remove spiral spring. Service and Repair

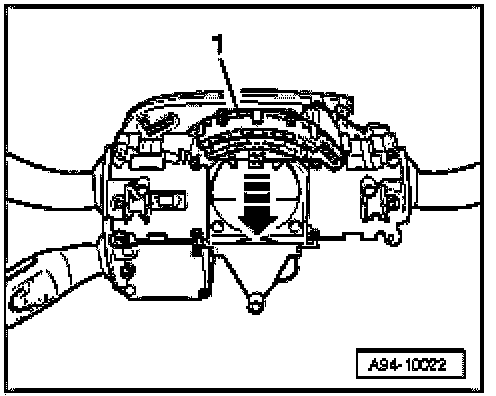

- Remove Steering Angle Sensor G85 - 1 - from Steering Column Electronic Systems Control Module J527in direction of -arrow -.

Installing
Install in reverse order of removal, noting the following:
- Perform "zero - calibrate" procedure using VAS 505/5052 in operating mode "Guided Fault Finding".
