Lumbar Support Adjustment Switch

Lumbar Support Adjustment Switch

Special tools, testers and auxiliary items required

• Engine and transmission holder (VAS 6095)





• Fixture for seat repair (VAS 6136)





Removing





- Remove seat. Refer to => [ Seat ] Seat.

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Attach the front seat to the fixture for seat repair (VAS 6136).

- Remove side trim on sill side. Refer to => [ Side Trim ] Side Trim.

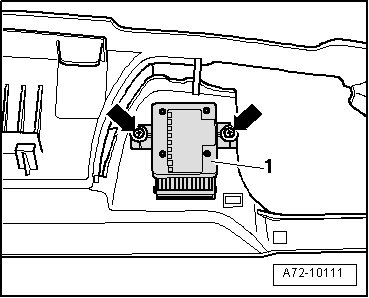

- Remove bolts - arrows -.

- Remove lumbar support adjustment switch - 1 -.

Installing

To install, perform the steps used in removal in reverse order.

Tightening Specifications
