Multi-Function Steering Wheel Overview
Multifunction Steering Wheel
=> [ Multifunction Steering Wheel Overview ]
=> [ Rear Steering Column Electronic Systems Control Module Connectors ]
=> [ Front Steering Column Electronic Systems Control Module Connectors ]

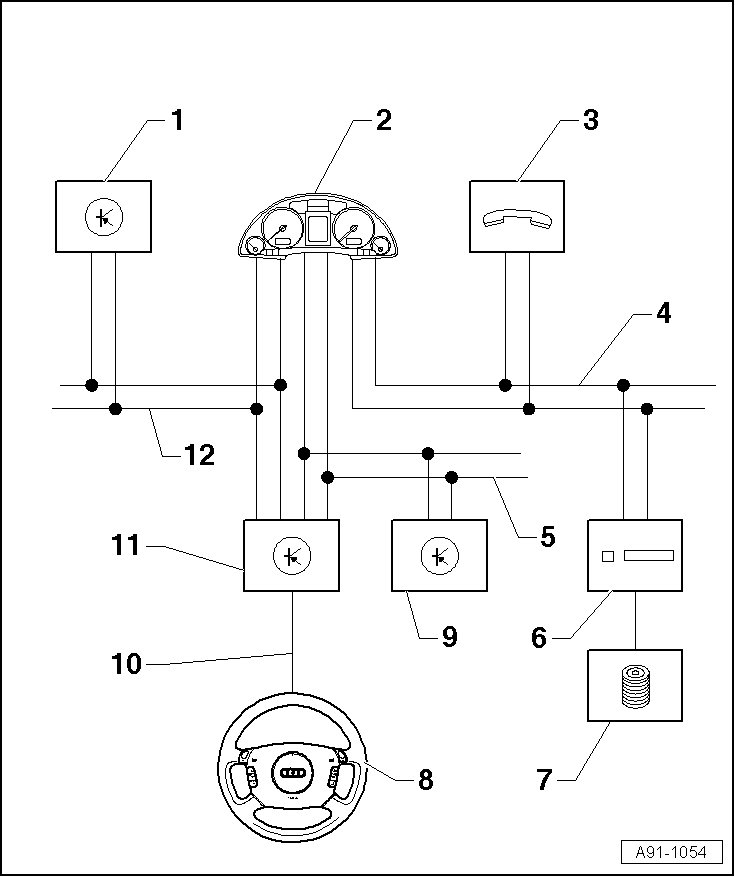

Multifunction Steering Wheel Overview
1 Engine Control Module (ECM) (J623) in plenum chamber
2 Instrument Cluster
3 Telephone/Telematics Control Module (J526) in electronics box under front right seat
4 CAN-BUS, Infotainment
5 CAN Bus, Comfort
6 Radio (R) in upper center console
7 CD Changer (R41) in glove compartment
8 Multifunction Steering Wheel
• Multifunction buttons, removing and installing, Refer to => [ Multifunction Steering Wheel ] Multifunction Steering Wheel
• Removing and installing Tiptronic buttons, refer to => [ Tiptronic Switch ] Multifunction Steering Wheel
9 Vehicle Electrical System Control Module (J519 ) behind driver's side storage compartment (left-hand drive)/behind glove compartment (right-hand drive)
10 LIN Data Bus, Single Wire Bus
11 Steering Column Electronic Systems Control Module (J527)
• Connector assignment, Refer to => [ Rear Steering Column Electronic Systems Control Module Connectors ] /=> [ Front Steering Column Electronic Systems Control Module Connectors ]
12 CAN Bus, Powertrain
Rear Steering Column Electronic Systems Control Module Connectors
16-pin multi-pin connector (T16a) black
1 Terminal 31
2 Terminal 30
5 Cruise control switched "Off"
6 Alarm (special-purpose vehicles)
7 Radio telephone (special-purpose vehicles)
8 CAN-Bus Low (comfort)
9 CAN-Bus High (comfort)
10 CAN-Bus High (powertrain)
11 CAN-Bus Low (powertrain)
12 Ignition terminal lock 75
13 Ignition lock terminal S
14 Ignition terminal lock 15
15 Ignition terminal lock 50
16 Ignition lock terminal P
Front Steering Column Electronic Systems Control Module Connectors
A - Cruise control connector
1 - Terminal 31
2 - Fix
3 - Distance
4 - Terminal 30
5 - Activation/touch control function (Off)
6 - Acceleration/deceleration
7 - Engaged (Off)
B - Turn signal indicator connector
1 - Terminal 31
2 - Radio telephone (special-purpose vehicles)
3 - Alarm (special-purpose vehicles)
5 - Headlight flasher/light control
6 - Turn signal indicators
C - Harness connector of multifunction steering wheel/Tiptronic/heated steering wheel
7 - Touch (-)
8 - Multi-function steering wheel (terminal 30)
9 - Multi-function steering wheel (data)
10 - Sensor heating/touch (+)
11 - Multi-function steering wheel (dimmer)
12 - Tiptronic Ground
13 - Steering wheel heating (+)
14 - Steering wheel heating (-)
D - Steering Angle Sensor (G85 )
1 - Light barrier 5
3 - Light barrier 1
3 - Light barrier 1
4 - Terminal 30
5 - Voltage supply (5 V)
6 - Light barrier 6
7 - Light barrier 4
8 - Light barrier 2
9 - Terminal 31
10 - Light barrier 7
E - Horn (H1)
1 - Terminal 31
2 - Horn
F - Wiper system
1 - Terminal 31
2 - Intermittent wipe potentiometer
3 - Board computer
5 - Wash
6 - Wipe
