Output Diagnostic Test Mode (DTM)

Output Diagnostic Test Mode (DTM) - 01J, Continuously Variable Transmission (CVT)

Note:
^ Output DTM can only be performed if the selector lever is in "P" or "N," the engine is not running and the vehicle is stationary.
^ Output DTM is terminated if the engine is started, the vehicle starts to move or if a switch is not made within about 60 seconds to the next actuator. It is also terminated if the selector lever is moved to a position other than "P" or "N."

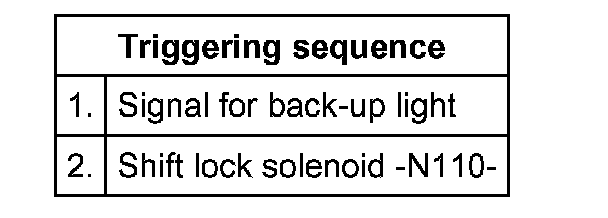

Triggering Sequence:

Test sequence
- Connect VAS 5051 Vehicle Diagnosis, Measurement and Information System and select vehicle system "02 Transmission Electronics". Ignition must be switched on.





Display on VAS 5051

- Touch -1- diagnostic function "03 Diagnostic Test Mode".

- Touch --> button.





Display on VAS 5051:

A - First actuator being tested

1 - Back-up light signal
^ The Park/Neutral Position (PNP) Relay -J226- turns the back-up lights ON and OFF at intervals for about 1 minute unless a switch has been made to the next actuator by pressing the --> button.

If the back-up lights do not illuminate:
- Check Park/Neutral Position (PNP) Relay -J226- and wiring using wiring diagram.

Note: Any electrical malfunctions are saved in the DTC memory. Refer to Diagnostic Trouble Codes.

- Touch --> button.





Display on VAS 5051:

A - Second actuator being tested

2 - Shift lock solenoid -N110-
^ The shift lock solenoid -N110- is triggered at intervals for about 1 minute (clicks) unless actuator diagnosis is terminated by touching the --> button.

Note: In addition, the brake symbol on the shift mechanism cover must illuminate at intervals.

If the solenoid is not triggered:

- Perform electrical test.

Note: Any electrical malfunctions are saved in the DTC memory. Refer to Diagnostic Trouble Codes.

- Touch the --> button.





Display on VAS 5051:

A - Actuator test is concluded

- End function "03 Diagnostic Test Mode" by touching <-- button.
