Secondary Air Injection Solenoid Valve, Checking

Secondary Air Injection Solenoid Valve, Checking

Special tools, testers and auxiliary items required

• Multimeter.

• Wiring diagram.

Test requirements

• Fuse (S234) OK.

• The Fuel Pump (FP) Relay (J17) OK.

• Battery voltage at least 12.5 V.

• All electrical consumers switched off (radiator fan must NOT run during test).

• A/C switched off.

• The ignition switched off.

Procedure

• Voltage is supplied to the Secondary Air Injection (AIR) Solenoid Valve (N112) from the Fuel Pump (FP) Relay (J17).

Procedure

- Disconnect the Secondary Air Injection (AIR) Solenoid Valve (N112) electrical harness connector - 2 -.





Checking internal resistance

- Using a multimeter, check the Secondary Air Injection (AIR) Solenoid Valve (N112) terminals 1 to 2 for resistance.





Specified value: 25 to 35 ohms (at approx. 20° C)

If the specified value was not obtained:

- Replace the Secondary Air Injection (AIR) Solenoid Valve (N112): Refer to Engine Mechanical Repair Information.

If the specified value was obtained:

Checking voltage supply

Crank the engine.

- Using a multimeter, check the Secondary Air Injection (AIR) Solenoid Valve (N112) electrical connector terminal 1 to Ground (GND) for voltage.





Specified value: battery voltage.

Switch the ignition off.

If the specified value was not obtained:

- Check the wiring from the Secondary Air Injection (AIR) Solenoid Valve (N112) electrical connector terminal 1 to the Fuel Pump (FP) Relay (J17) terminal 2 for a short circuit to Battery positive (+), Ground (GND), or an open circuit.

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the wiring connection.

If no malfunctions are found in the wiring:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box. (test box) at Engine Control Module.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Motronic Engine Control Module (ECM) ( J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

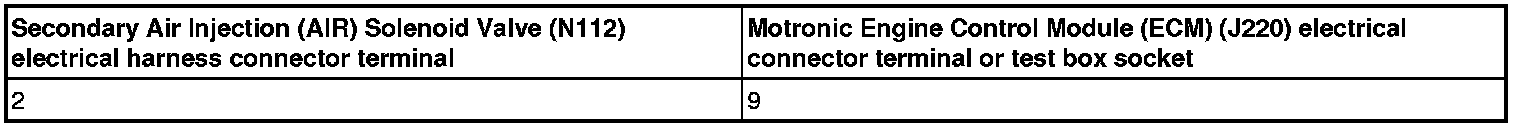

- Using a multimeter, check the Secondary Air Injection (AIR) Solenoid Valve (N112) electrical harness connector terminal 2 to the Motronic Engine Control Module (ECM) (J220) electrical harness connector terminal 9 for an open circuit.









Specified value: 1.5 ohms Max.

If the specification was not obtained:

- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is detected in the wiring:

- Replace the Motronic Engine Control Module (ECM) (J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Modes ] Diagnostic Modes.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Diagnostic Modes ] Diagnostic Modes.

- End of diagnosis.
