Secondary Air Injection Pump Relay, Checking






Secondary Air Injection Pump Relay, Checking

Special tools, testers and auxiliary items required

Multimeter.

Wiring diagram.

Test requirements

Fuse (S130) OK.

Fuse (S234) OK.

The Fuel Pump (FP) Relay (J17) OK.

Battery voltage at least 12.5 V.

All electrical consumers switched off (radiator fan must NOT run during test).

A/C switched off.

The ignition switched off.

Procedure

- Remove the Secondary Air Injection (AIR) Pump Relay (-J299-).

Checking voltage

- Using a Multimeter, check the Secondary Air Injection (AIR) Pump Relay (-J299-) socket 8/87 to Ground (GND).

Specified value: battery voltage.

If the specified value was not obtained:

- Check the wiring connections from the Battery to the Secondary Air Injection (AIR) Pump Relay (-J299-) socket 8/87 for an open circuit or a short circuit.

- Check the wiring connections for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

- Crank the engine.

- Using a Multimeter, check the Secondary Air Injection (AIR) Pump Relay (-J299-) socket 4/86 for voltage.

Specified value: battery voltage.

- Switch the ignition off.

If the specified value was not obtained:

- Check the wiring connection from the Fuel Pump (FP) Relay (J17) socket 2 to the Secondary Air Injection (AIR) Pump Relay (-J299-) socket 4/86 for an open circuit or a short circuit.

- Check the wiring connections for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used. Perform the following step.

- Install the test box.

If the manufacturers test box is not being used. Perform the following step.

- Remove the Motronic Engine Control Module (ECM) ( J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

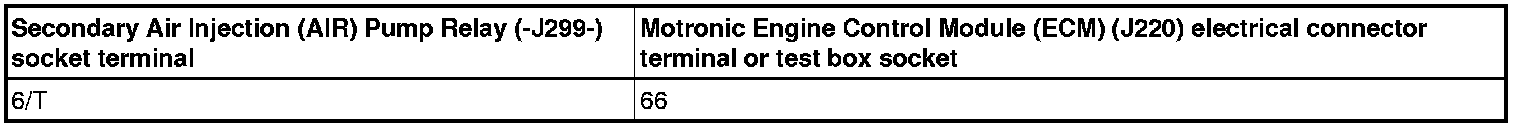

- Using a Multimeter, check the Secondary Air Injection (AIR) Pump Relay (-J299-) socket 6/T to the Motronic Engine Control Module (ECM) (J220) electrical harness connector terminal 66 for resistance.





Specified value: 1.5 ohms Max.

If the specification was not obtained:

- Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).

- Check the electrical harness connector for damage, corrosion, lose or broken terminals.

- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was OK:

- Replace the Secondary Air Injection (AIR) Pump Relay (-J299-). Refer to Engine Mechanical Repair Information.

If no malfunction is found in the wiring and voltage supply was not OK:

- Replace the Motronic Engine Control Module (ECM) (J220). Refer to => [ Engine Control Module, Replacing ] Engine Control Module, Replacing.

Final procedures

After repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to => [ Diagnostic Modes ] Diagnostic Modes.

2. If necessary, erase the DTC memory. Refer to => [ Diagnostic Mode 04 - Erase DTC Memory ] Diagnostic Mode 04 - Erase DTC Memory.

3. If the DTC memory was erased, generate readiness code. Refer to => [ Diagnostic Modes ] Diagnostic Modes.

- End of diagnosis.
