Reading Measured Value Block

Reading Measured Value Block

Requirements

• Coolant temperature at least 80 °C.

• Electrical devices switched off (coolant fan must not run during test).

• Air conditioning switched off.

Work sequence

- Connect vehicle diagnostic, testing and information system (VAS 5051) and select vehicle system "01 -Engine electronics" in selection. Refer to => [ VAS5051, Connecting and Selecting Functions ] VAS 5051, Connecting and Selecting Functions. Engine must be run at idle.

Display on (VAS 5051):





- Under - 1 - select diagnostic function "08 - Read measured value block".

Display on (VAS 5051):





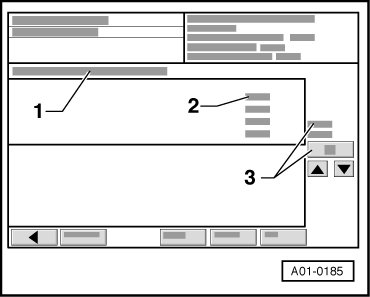

1 - Enter display group

- Enter desired display group number (three figures) in zone - 2 - and confirm entry by pressing Q button.

• The choice of display group depends on the particular functions and components to be tested.

Display on (VAS 5051):





1. Display group X

2. Display zone 1

Display zone 2

Display zone 3

Display zone 4

3 - Display group X

• If no display follows, a display field is not assigned.

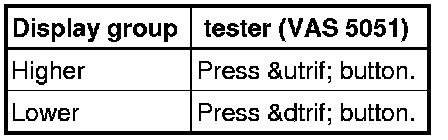

• To switch to a different display group, proceed as follows:





- Press arrow button to end function "08 - Read measuring value block".
