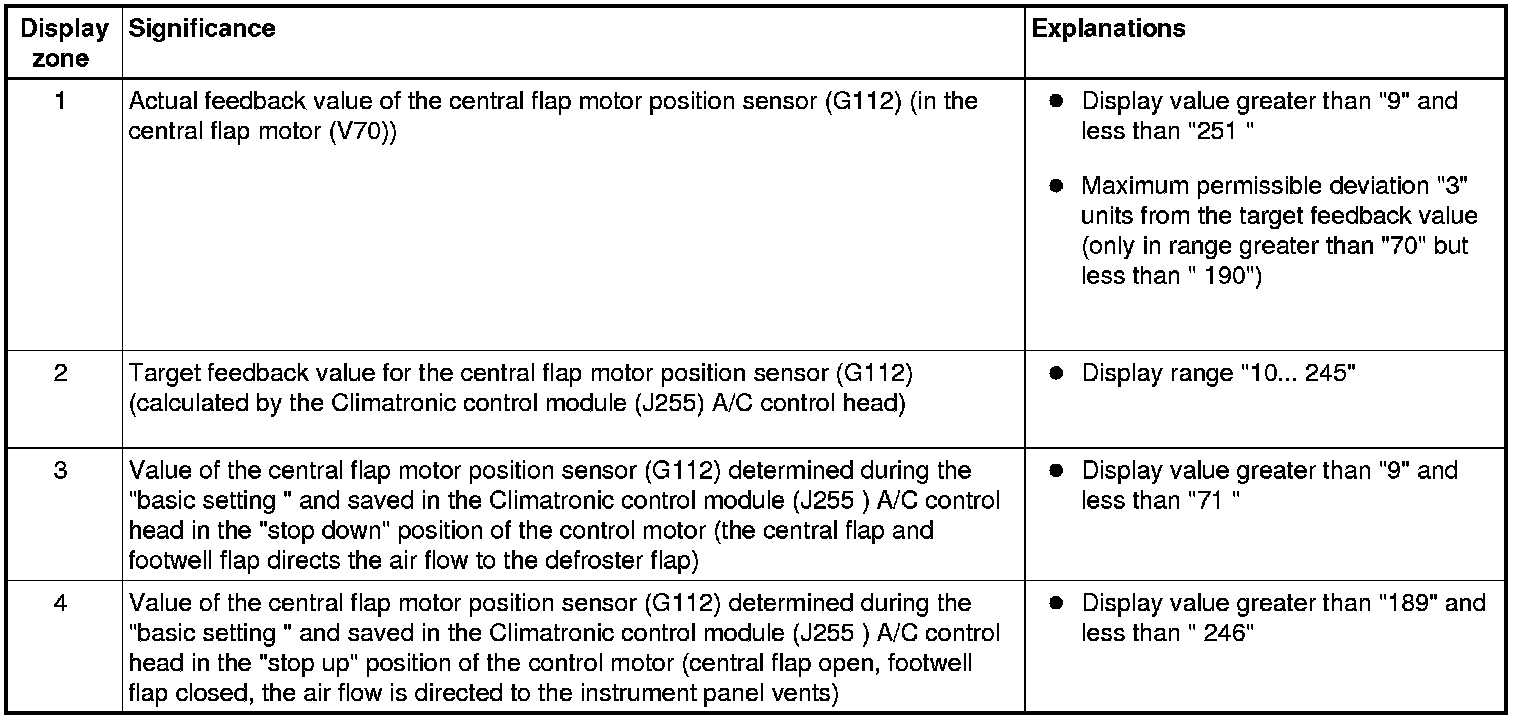

Display Group 006

Display Group 006

Central Air Door Motor (V70)





• Via the lever attached to the flaps, the following operating states of the A/C system (and all intermediate settings) are possible depending on the position of the control motor:

- Footwell and central flap closed = defrost mode (air to the windshield)

- Footwell flap open and central flap closed = air in the footwell (feedback value in display field "1" and "2" between " 110" and "150").

- Footwell flap closed and central flap open = air from the instrument panel vents

• The information regarding display group "003" also applies to this display group; observe this information as necessary.
